| Part Number: | P64706-B21 |
|---|---|
| Manufacturer: | HPE |
| Servers Spare Parts: | Server Memory Kit |
| Model: | DL320 (G11), DL360 (G11), ML110 (G11), ML350 (G11) |
| Description: | Buy HPE P64706-B21 32GB DDR5-5600 Server Memory Kit. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

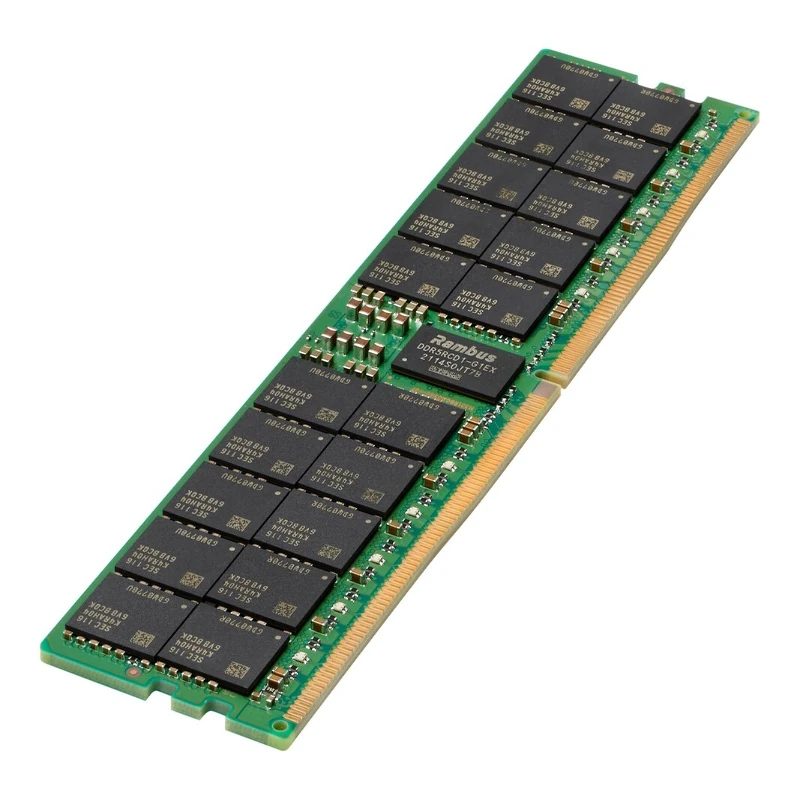

HPE’s full name for P64706-B21 is the “32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit”. The -B21 ending marks it as an option kit, the version HPE and its partners sell for server upgrades and new configurations.
The kit belongs to the 5600 MT/s Smart Memory family that HPE released for Gen11 Intel servers fitted with 5th Generation Xeon Scalable processors. It sits between the 16GB and 64GB kits in that range and is one of the most popular sizes for mainstream virtualisation and application hosts.
Euroland IT Store carries P64706-B21 as New and Refurbished stock, subject to availability. The condition and warranty for each option show on the product page once you choose it.
HPE’s DDR5 QuickSpecs list a full ladder of 5600 MT/s registered kits for Gen11 Intel servers: P64705-B21 (16GB 1Rx8), P64706-B21 (32GB 2Rx8), P64707-B21 (64GB 2Rx4), P64708-B21 (96GB 2Rx4) and 3DS kits at 128GB and 256GB. Because HPE does not allow rank mixing or x4 and x8 mixing within a socket, picking a size also fixes which other kits can share the server. The 32GB kit should be paired only with more 32GB 2Rx8 kits.
Choosing between sizes usually comes down to channel count. A two-socket DL380 Gen11 has sixteen memory channels, so sixteen of these kits give 512GB at one DIMM per channel while keeping the full speed the processor allows. Going to 64GB kits doubles that capacity in the same slots, while filling the second DIMM per channel with 32GB kits reaches 1TB at a reduced speed.
HPE also lists a P64706-K21 kit with the same specification. Behind the option kit sit the spare number P65254-001, PartSurfer spare P68074-001, and the label numbers P53626-0A1 and P53626-0AE.
Many Gen11 servers were first shipped with 4th Gen Sapphire Rapids processors and the DDR5-4800 kits that go with them, such as P43328-B21 32GB DDR5-4800. HPE QuickSpecs say Sapphire Rapids supports only PC5-4800B memory and Emerald Rapids supports only PC5-5600B or PC5-5200B. If you move a server to 5th Gen processors, plan to replace the memory with 5600 MT/s kits like this one at the same time.
At one DIMM per channel the kit can reach 5600 MT/s, subject to the processor’s own memory limit. With two DIMMs per channel, HPE quotes 4400 MT/s for 5th Gen configurations in the DL380a Gen11 QuickSpecs.
New kits suit capacity upgrades and fresh deployments. You can see their condition and warranty once New is selected.
Refurbished kits offer a lower cost route to matching or replacing existing modules. You can see their condition and warranty once Refurbished is selected.
| Specification | Details |
|---|---|
| Option kit number | P64706-B21 (P64706-K21 listed with the same specification) |
| Spare numbers | P65254-001, P68074-001 |
| Assembly numbers | P53626-0A1, P53626-0AE |
| Kit contents | 1 x 32GB DIMM |
| Memory technology | DDR5 SDRAM, registered |
| Ranks | Dual rank, x8 devices |
| Rated speed | DDR5-5600 (PC5-44800) |
| CAS latency | 46-45-45 |
| Data integrity | EC8 ECC |
| Supply voltage | 1.1V |
| Connector | 288-pin DIMM |
| Target platform | HPE Gen11 with 5th Gen Intel Xeon Scalable |
The servers already shown on this listing (DL320, DL360, ML110 and ML350 Gen11) are joined by several more in reseller data based on HPE information. Each requires 5th Gen Intel Xeon processors:
Gen12 servers use DDR5-6400 memory, such as the P71256-001 64GB DDR5-6400 kit.
We deliver within the UK, and the available options appear at checkout. If you want a second opinion on compatibility, send us the server model, serial number and current DIMM label details.
It marks an HPE option kit, the version sold for upgrades and new builds. The same 32GB DDR5-5600 module is also known by spare numbers P65254-001 and P68074-001 and by label numbers P53626-0A1 and P53626-0AE.
Yes. HPE lists 4th Gen Xeon processors as supporting PC5-4800B memory and 5th Gen processors as supporting PC5-5600B or PC5-5200B, so DDR5-4800 kits should be replaced with 5600 MT/s kits such as P64706-B21.
HPE does not allow rank mixing or mixing x4 and x8 memory within a socket on Gen11. The 16GB kit is single rank and the 64GB kit is x4, so keep to 32GB 2Rx8 kits.
The warranty and condition for New and Refurbished stock are shown on the product page when you select either option.
Yes. UK delivery is available, and the options for your address are listed at checkout.
