HPE P41095-001 1.92TB 2.5″ 6Gbps Server Hard Drive

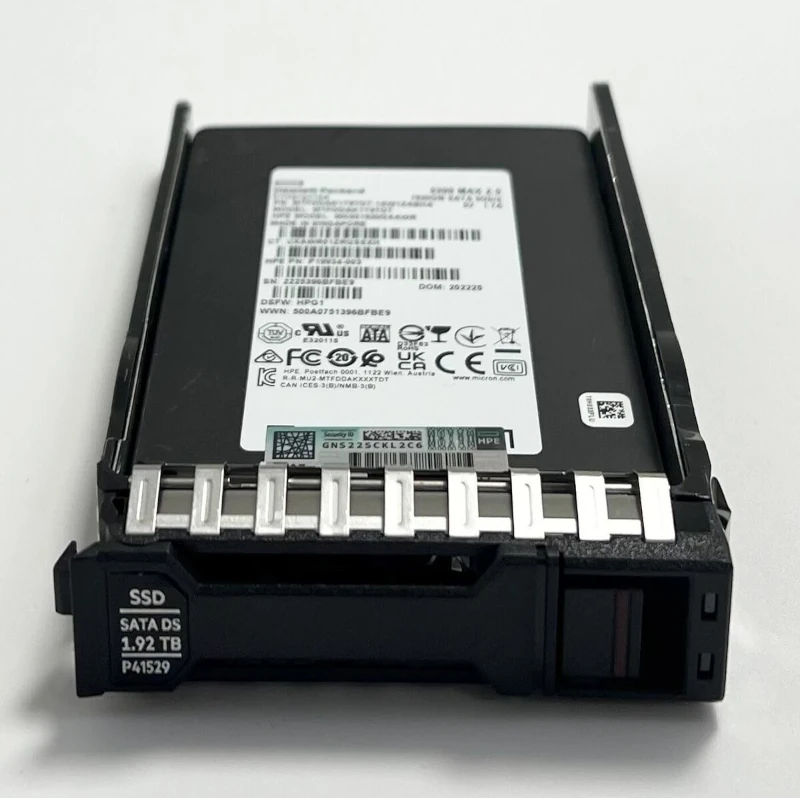

HPE P41095-001 is a 1.92TB SATA 6G Mixed Use SFF Basic Carrier Multi Vendor SSD assembly. The associated option is P40504-B21 and the service spare is P41529-001. Published specifications identify TLC NAND, digitally signed firmware, 3.05 drive writes per day and 10,000TB endurance. Those figures position this drive differently from HPE Read Intensive SSDs: it is designed for workloads with a more balanced combination of reads and writes.

Mixed Use Is the Main Buying Decision

Capacity alone does not explain this SSD. At 1.92TB it offers substantial flash storage in a 2.5-inch SFF bay, but the Mixed Use classification is equally important. A 3.05 DWPD endurance rating supports considerably more daily writing than the 0.5 DWPD published for the 480GB Read Intensive family.

Specification Card

Where Mixed Use Storage Makes Sense

Applications with regular write activity can require more endurance than a read-focused SSD is designed to provide. Database workloads, virtualised applications, caching and other mixed I/O patterns can make the Mixed Use class more appropriate. The exact workload should still be assessed rather than selecting the higher-endurance drive automatically.

Assembly Number versus the Model on the SSD

MK001920GYCNF is one model identity found within the broader 1.92TB HPE SATA Mixed Use family. The P41095-001 assembly page is therefore aimed at buyers working from the HPE assembly or option/spare references, while the MK001920GYCNF page helps technicians starting from a label on a physical drive.

Compare with the 480GB Read Intensive Family

HPE P41074-001 provides 480GB and is rated for Read Intensive use at 0.5 DWPD. Its related model VK000480GWTTA belongs to that qualified multi-vendor family. P41095-001 offers four times the headline capacity and a different endurance profile, so the two SSDs address different storage plans.

Why SAS HDDs May Still Appear in the Same Estate

Not every existing array is designed around SATA SSDs. The HPE 872483-007 1.8TB SAS HDD and HPE 868774-007 600GB 15K SAS HDD support established SAS environments with different capacity and performance characteristics. Storage-controller and array compatibility should be considered before changing media type or interface.

New and Refurbished Mixed Use SSDs

New P41095-001 drives are appropriate for new supported configurations, planned replacements and spare pools. Refurbished SSDs can extend the life of compatible servers, but the condition, warranty and drive health are important considerations for flash storage. The product’s original endurance rating describes the drive family; it should not be interpreted as the remaining life of a particular refurbished unit.

Pairing Storage with a Configurable Server

The HPE P52499-B21 DL360 Gen11 8SFF CTO Server is configured from selected options rather than shipped with one fixed storage specification. Where this SSD family is being considered for a new build, the chosen backplane and controller should support the intended SATA SFF Basic Carrier configuration.

Capacity and Endurance Work Together

A 1.92TB Mixed Use drive can consolidate more data per SFF bay while also supporting a heavier write profile than a Read Intensive SSD. That combination can be useful where bay count is limited and the application performs regular writes. The correct design still depends on RAID level, controller support, required usable capacity and the expected write volume across the life of the deployment.

Published Performance for the Mixed Use Family

Parts specifications list up to 59,000 4KB random read IOPS and 31,000 random write IOPS, with internal sequential rates around 520 MB/s read and 480 MB/s write. Those figures illustrate the more balanced read/write profile of this SATA SSD family. Actual application results depend on the server, controller, RAID design and workload, so they are better used for product-class comparison than as a guarantee of system-level performance.

Basic Carrier and Hot-Plug Service

P41095-001 is specified in an HPE Basic Carrier for compatible SFF bays. The hot-swap drive design supports serviceable enterprise storage configurations, but replacing a live drive still depends on the RAID state and server procedure. Carrier type should also be matched carefully when sourcing for systems from different HPE generations.

Source P41095-001 for a Mixed-Write Requirement

Euroland IT Store can help source P41095-001 and related HPE SSDs for UK and international customers. Use the assembly, option or spare reference to keep purchasing aligned with the intended 1.92TB Mixed Use family.

P41095-001 FAQs

What is P41095-001?

A 1.92TB SATA 6G Mixed Use SFF Basic Carrier Multi Vendor SSD assembly.

What endurance is published?

3.05 DWPD and 10,000TB endurance are published for this drive family.

Which option and spare numbers are associated?

P40504-B21 is the option and P41529-001 is the spare.

What is MK001920GYCNF?

It is one model identity associated with HPE 1.92TB SATA Mixed Use SSD offerings.

How is this different from P41074-001?

P41074-001 is a 480GB Read Intensive SSD with a lower write-endurance class.

Does it use a Basic Carrier?

Yes. The family is specified as SFF Basic Carrier.
