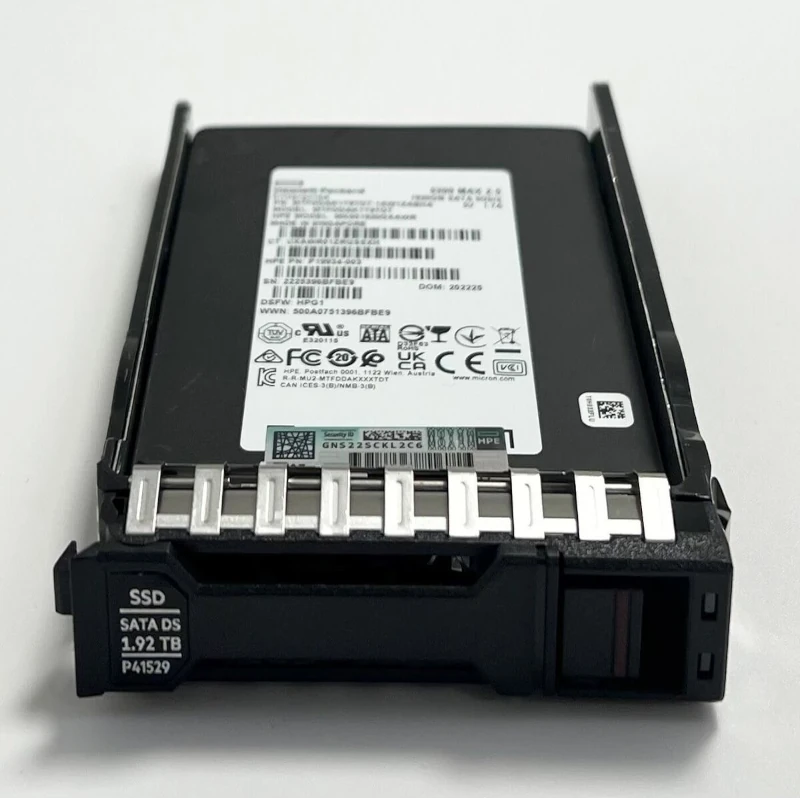

HPE MK001920GYCNF 1.92TB 2.5″ 6Gbps Server Hard Drive

MK001920GYCNF is a physical drive-model identifier used within HPE 1.92TB SATA 6G Mixed Use SSD offerings. HPE firmware packages explicitly include MK001920GYCNF among supported SATA storage-disk models, confirming it as an HPE-supported drive identity rather than merely a reseller-created number. Depending on the HPE commercial drive generation, this model can appear under different option, spare and assembly references, so this page focuses on identifying the model itself and understanding the product family around it.

Why the Model Number Is Useful

When a drive is removed from a server, the most visible identifier may be the model code rather than the option number originally used to purchase it. MK001920GYCNF therefore gives technicians a direct way to search from the physical SSD label. It is associated with 1.92TB SATA 6G Mixed Use SFF enterprise SSD configurations.

Core Characteristics of the MK001920GYCNF Family

• Capacity: 1.92TB
• Media: Solid State Drive
• Interface: SATA 6Gb/s
• Form factor: 2.5-inch SFF
• Workload: Mixed Use in the relevant HPE offerings
• Firmware: Supported by HPE universal drive firmware packages

One Model Can Appear under More Than One HPE Commercial Reference

HPE multi-vendor drive programmes can reuse a qualified model across different carrier or commercial-option generations. Current parts references associate MK001920GYCNF with the P41095-001 / P40504-B21 1.92TB Mixed Use family in Basic Carrier configurations, while other references also show the model under earlier Smart Carrier offerings. That is why the carrier and option/spare identity should be checked alongside the model number.

Do Not Match by Capacity Alone

A 1.92TB label does not establish the interface, workload class or carrier. Two 1.92TB SSDs can have different endurance profiles or physical carrier requirements. Starting with MK001920GYCNF is useful, but the complete HPE configuration should determine the replacement.

Compare the 1.92TB MU Family with 480GB RI

The HPE P41074-001 family is a 480GB SATA Read Intensive SSD offering, and VK000480GWTTA is one of its model identities. That family is rated for 0.5 DWPD, whereas the P41095-001 Mixed Use family has a substantially higher published write-endurance profile. The difference illustrates why workload class should be checked even when both products are SATA SSDs.

SSD versus Enterprise SAS HDD

Existing systems may also contain spinning SAS storage. The HPE 872483-007 1.8TB 10K SAS HDD provides capacity close to 1.92TB but uses a completely different media type and interface. The HPE 868774-007 600GB 15K SAS HDD prioritises spindle speed in an HDD-based design. Neither should be treated as a drop-in equivalent to this SATA SSD family.

Firmware Is Part of Enterprise Drive Maintenance

HPE publishes universal firmware packages covering MK001920GYCNF and related models. That matters because enterprise SSD maintenance includes firmware as well as physical replacement. Administrators should use the HPE support path appropriate to their platform when planning drive firmware updates.

New and Refurbished MK001920GYCNF

New units can suit planned deployments or replacements where this exact qualified model is required. Refurbished drives may be useful for established compatible servers, but remaining SSD health and the seller’s warranty are important. The original family endurance figure should not be confused with the remaining endurance of an individual used drive.

Useful for Firmware and Replacement Records

Because HPE names MK001920GYCNF directly in drive firmware packages, retaining the model number in asset records can help administrators identify which firmware family applies to installed media. The commercial option number remains important for purchasing, but the model identifier can be more practical when checking the actual hardware present in a server during maintenance.

Why the Same Model Can Appear in Different Listings

Multi-vendor enterprise SSD programmes are designed around a qualified product specification rather than one permanently fixed underlying vendor model. Conversely, an approved model such as MK001920GYCNF can appear in more than one HPE commercial listing as carrier generations and option families evolve. This explains why search results for the model may show different HPE option numbers. The server generation, carrier, spare number and intended drive family should be considered together before a replacement is selected.

Use the Model Number to Trace the Correct HPE Family

Euroland IT Store can help identify MK001920GYCNF against the relevant HPE option, assembly and carrier configuration and source New or Refurbished storage where available.

MK001920GYCNF FAQs

What is MK001920GYCNF?

It is an HPE-supported model identifier for a 1.92TB SATA 6G enterprise SSD used in Mixed Use offerings.

Is it listed in HPE firmware packages?

Yes. HPE universal drive firmware packages explicitly include MK001920GYCNF.

Is it related to P41095-001?

Yes. Parts references include MK001920GYCNF among model identities associated with the 1.92TB SATA Mixed Use family.

Why should I check the carrier as well?

The same underlying model can appear in different HPE commercial or carrier configurations.

Is it the same as VK000480GWTTA?

No. VK000480GWTTA belongs to a 480GB Read Intensive SSD family.

Can I replace a SAS HDD with it automatically?

No. SATA SSD and SAS HDD compatibility depends on the server backplane, controller and supported configuration.
