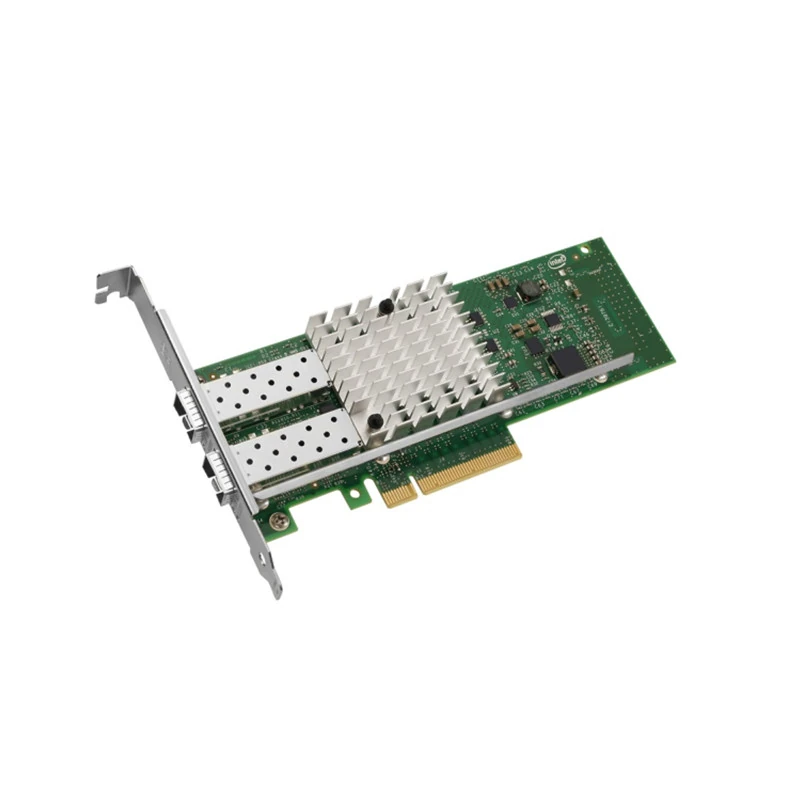

HPE P28787-B21 X710-DA2 10Gb SFP+ Adapter

HPE P28787-B21 Intel X710-DA2 Ethernet 10Gb 2-Port SFP+ Adapter

The HPE P28787-B21 Intel X710-DA2 Network Adapter provides two 10Gb Ethernet connections for compatible HPE servers. Featuring dual SFP+ ports and a PCI Express 3.0 x8 interface, it offers a practical way to add high-speed network connectivity without replacing existing server hardware.

This stand-up PCIe adapter is designed for supported enterprise server configurations and can be used with qualified SFP+ optical transceivers or direct-attach cables. It is suitable for server networking, virtualised workloads and data centre connectivity where reliable 10Gb Ethernet links are required.

HPE P28787-B21 Technical Specifications

Why Choose the Intel X710-DA2 Adapter?

The P28787-B21 offers a straightforward solution for businesses that need additional 10Gb Ethernet capacity in a compatible server.

• Dual-port networking: Two SFP+ connections allow separate physical Ethernet links.
• PCIe 3.0 x8 interface: Designed for supported standard server expansion slots.
• Intel X710 controller: Provides enterprise Ethernet networking capabilities and supported virtualisation features.
• Flexible connections: Works with qualified optical modules and direct-attach cables.
• Low power consumption: HPE documents typical consumption of 3.3W and maximum consumption of 3.7W.

Server Compatibility and Installation

HPE P28787-B21 is intended for selected HPE server configurations. Before ordering, check the exact server model and generation against the relevant HPE QuickSpecs.

Confirm that a supported PCIe expansion slot is available and that the supplied mounting bracket fits the server chassis. The adapter is a stand-up PCIe card and cannot be installed directly into an OCP 3.0 networking slot.

After installation, use the appropriate HPE-supported firmware and drivers. Test both ports and confirm the negotiated link speeds before using the adapter in production.

SFP+ Cabling and Network Connections

The adapter uses SFP+ ports rather than RJ-45 Ethernet sockets. This allows connection to compatible switches using qualified optical transceivers and fibre cables, or suitable direct-attach copper cables.

The correct connection depends on the switch interface, cable distance and supported module specifications. Optical transceivers and cables should not be assumed to be included with the adapter.

P28787-B21 vs P28778-B21

HPE offers two Intel X710-DA2 dual-port SFP+ adapters with different physical formats:

• P28787-B21: Stand-up PCIe 3.0 x8 adapter.
• P28778-B21: OCP 3.0 adapter.

Both are designed for 10Gb Ethernet connectivity, but they use different installation formats. Check your server’s supported networking slots before choosing either model.

New and Refurbished HPE P28787-B21

New HPE P28787-B21

A New or unused adapter may be suitable for planned network upgrades or replacement inventory. Confirm the product condition, included brackets, packaging and warranty before purchasing.

Refurbished HPE P28787-B21

A Refurbished Intel X710-DA2 adapter may provide a cost-effective option for maintaining existing server infrastructure. Buyers should request confirmation of physical inspection, adapter detection and testing of both SFP+ ports.

For either condition, check availability, warranty coverage and UK delivery arrangements with Euroland IT Store.

Related HPE Network Adapters

Explore other enterprise networking products:

• HPE P26259-B21 Broadcom BCM57412 Adapter – A dual-port 10Gb SFP+ stand-up PCIe adapter.
• HPE P26874-001 Broadcom BCM57412 Spare – A replacement spare for the Broadcom SFP+ adapter family.
• HPE P26256-B21 Broadcom BCM57412 OCP3 Adapter – A dual-port SFP+ adapter for compatible OCP 3.0 slots.
• HPE P08443-B21 Intel E810 Adapter – A 10/25Gb SFP28 networking option.
• HPE 817738-B21 Ethernet 562T Adapter – A dual-port 10Gb RJ-45 copper Ethernet adapter.

Related products are included for navigation and are not guaranteed to be direct replacements or compatible with the same server configurations.

Buy HPE P28787-B21 Network Adapter in the UK

Euroland IT Store helps UK businesses source HPE network adapters, server spare parts and enterprise IT hardware.

Contact our team to enquire about P28787-B21 availability, New or Refurbished condition, pricing, warranty and UK delivery.

For compatibility assistance, provide your server model and the network switch or SFP+ connection you intend to use.

Request a Quote for HPE P28787-B21

Frequently Asked Questions

1. What is HPE P28787-B21?

HPE P28787-B21 is an Intel X710-DA2 dual-port 10Gb SFP+ Ethernet adapter designed for compatible HPE servers.

2. How many ports does P28787-B21 have?

It has two SFP+ ports, each supporting 10Gb Ethernet connectivity with compatible networking equipment.

3. Is HPE P28787-B21 an OCP 3.0 adapter?

No. It is a stand-up PCIe 3.0 x8 adapter. P28778-B21 is the related OCP 3.0 version.

4. What is the replacement spare for P28787-B21?

HPE PartSurfer lists P31328-001 as the associated replacement spare for the Intel X710-DA2 adapter.

5. Can I buy HPE P28787-B21 in New or Refurbished condition?

New and Refurbished options may be available through Euroland IT Store. Contact the team to confirm stock, testing, warranty and UK delivery.
