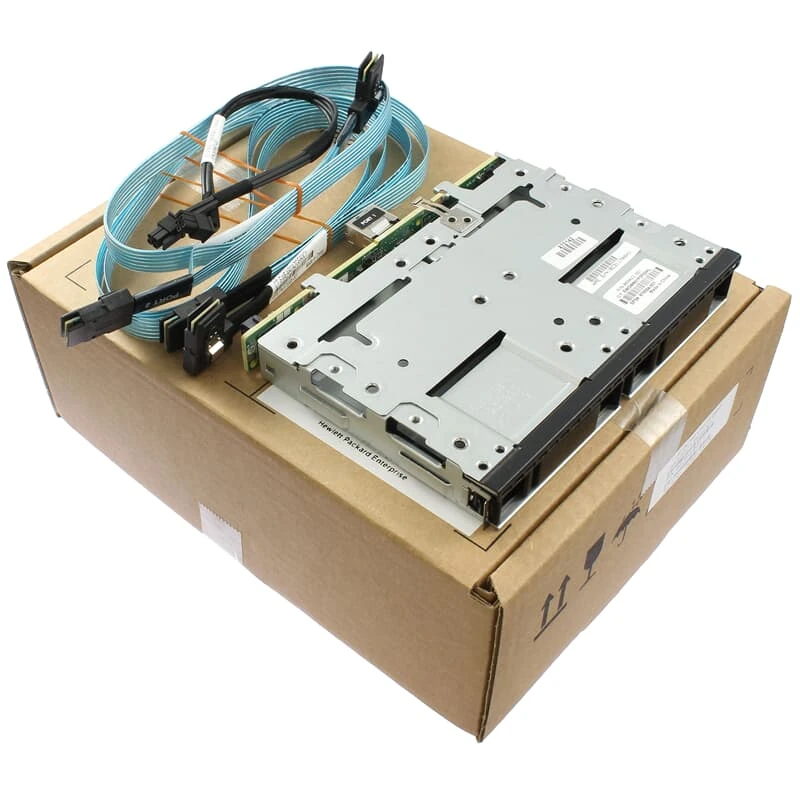

HPE 876867-001 DL360 G10 Server Backplane Kit

HPE 876867-001 DL360 Gen10 Server Backplane Cable

The HPE 876867-001 is an internal storage backplane cable used in supported HPE ProLiant DL360 Gen10 server configurations. It provides a connection between the server’s SAS/SATA drive backplane and a compatible Type-p HPE Smart Array storage controller.

Although this component may appear in listings under the broader description of a DL360 Gen10 server backplane kit, HPE’s maintenance documentation identifies 876867-001 as a cable part number. This distinction is important when replacing damaged storage connections or sourcing components for an existing server.

Euroland IT Store helps UK businesses source enterprise server hardware and spare parts. Customers looking for HPE 876867-001 can enquire about New and Refurbished stock, supplied components, compatibility, warranty and UK delivery arrangements before ordering.

HPE 876867-001 Technical Specifications

Product identification: HPE’s official service guide lists 876867-001 as a cable rather than a complete backplane board. Buyers should confirm whether the individual product listing supplies the cable alone or additional components.

What Does the HPE 876867-001 Do?

A storage backplane provides the connection points for drives installed in a server. The storage controller manages communication with those drives, while the internal cabling provides the connection between the two components.

In supported DL360 Gen10 configurations, the HPE 876867-001 serves this internal cabling function.

Its documented applications include connecting a 2SFF SAS/SATA backplane to a Type-p Smart Array controller. HPE also references the part number in the internal cabling arrangements for an 8SFF SAS/SATA backplane.

The cable does not contain a storage controller, hard drive or backplane circuit board. Its purpose is to provide the required physical connection within the supported server configuration.

Where Is HPE 876867-001 Used in the DL360 Gen10?

The HPE ProLiant DL360 Gen10 supports different drive bay and storage controller arrangements. The internal cabling depends on which storage hardware is installed.

2SFF SAS/SATA Backplane Connection

HPE lists 876867-001 under the 2SFF backplane option kit and identifies its connection between the 2SFF SAS/SATA backplane and the supported Type-p Smart Array controller.

This is relevant when maintaining or configuring additional SFF storage connections in a compatible server.

8SFF SAS/SATA Backplane Cabling

The same cable number also appears in the SFF internal cable documentation for a connection involving an 8SFF SAS/SATA backplane and a Type-p Smart Array controller in Slot 1.

However, buyers should not assume that the cable works with every eight-bay storage configuration. The correct cable depends on the controller model, position and internal routing.

Smart Array Controller Requirements

HPE documents several controller connection options for the DL360 Gen10. These may require different cables, even when the same drive backplane is installed.

For example, HPE identifies 869669-001 for certain connections involving the P816i-a Smart Array controller. This illustrates why the storage controller must be checked before ordering 876867-001.

How Does It Compare with Other DL360 Gen10 Cables?

The following part numbers appear in HPE’s DL360 Gen10 cabling documentation. Their applications differ according to the installed backplane and controller.

These cable part numbers should not be treated as interchangeable. Refer to the official HPE DL360 Gen10 SFF Cabling Guide to identify the correct configuration.

When Might You Need a Replacement Backplane Cable?

Storage Drives Are Not Detected

If drives connected to a particular backplane are missing from the server’s storage management interface, the internal cable may be one possible cause.

Before replacing it, review the controller status, drive health and cable connections.

Visible Cable Damage

Physical damage to a cable or its connectors can affect the reliability of a storage connection. A damaged cable should be replaced with the correct supported part rather than modified or repaired using an unapproved method.

Changes to the Storage Controller

A server maintenance project may involve changing the controller arrangement or restoring the original hardware configuration. In these situations, the appropriate internal cabling must be confirmed against HPE’s documentation.

Intermittent Storage Communication

Repeated drive connection alerts can sometimes result from an unstable internal connection. However, similar symptoms may be caused by the backplane, controller or drives themselves.

Replacing the cable is appropriate when diagnosis identifies it as the faulty or incorrect component.

New and Refurbished HPE 876867-001 Options

New HPE 876867-001

A New cable may be preferred when unused replacement hardware is required for planned server maintenance or storage configuration work.

Before purchasing, confirm the part number, connector condition, packaging and whether the item is supplied individually or as part of a larger kit.

Refurbished HPE 876867-001

A Refurbished cable may provide a cost-effective replacement for businesses maintaining existing DL360 Gen10 servers.

For refurbished stock, buyers should enquire about inspection, connector condition, testing and warranty coverage. Cable condition is particularly important because damaged connectors or conductors can affect storage reliability.

Both New and Refurbished options depend on the actual stock available from the supplier.

Important Checks Before Installation

When replacing internal server cabling, use the appropriate HPE maintenance procedures and ensure that the server’s storage configuration is understood.

• Confirm the exact HPE part number on the existing cable.
• Identify the installed SAS/SATA backplane.
• Check the storage controller model and slot position.
• Review the documented cable routing arrangement.
• Ensure current backups and an appropriate recovery plan are available.
• Shut down and isolate the server according to HPE instructions.
• Avoid bending, pinching or damaging the cable during installation.
• Verify drive detection and storage controller health after replacement.

HPE specifically cautions against routing internal cables where they may become pinched or crimped. Incorrect routing can interfere with component installation or damage the cable.

Related HPE Server Storage Components

Euroland IT Store also lists backplanes, drive cages and storage hardware for different HPE server generations. These products are provided for wider hardware sourcing and are not confirmed direct replacements for the 876867-001 cable.

• HPE 867966-B21 DL360 Gen10 2SFF Backplane Kit – A related storage backplane option for supported DL360 Gen10 configurations.
• HPE 867972-B21 DL360 Gen10 Rear Backplane Kit – A single-position rear storage option for compatible servers.
• HPE 780428-001 DL360 Gen9 Server Backplane – An eight-bay SAS/SATA backplane for supported earlier-generation systems.
• HPE 768857-B21 DL380 Gen9 8SFF Cage Bay Kit – A storage bay expansion component for compatible DL380 Gen9 servers.
• HPE 537000-001 HDD Backplane with Cage – A replacement storage assembly for selected HPE systems.

Always verify server generation, backplane design and controller requirements before ordering related components.

Order HPE 876867-001 from Euroland IT Store

Euroland IT Store is a UK-focused multivendor IT hardware and spares specialist helping businesses source components for enterprise server maintenance and replacement projects.

If you require HPE 876867-001, provide the server model, existing cable part number and storage controller details when requesting a quotation.

Customers can enquire about stock availability, New and Refurbished conditions, supplied components, applicable warranty, pricing and UK delivery arrangements.

Need an HPE 876867-001 for your DL360 Gen10? Confirm the correct cable and request a quotation before ordering.

Request a Quote for HPE 876867-001

Frequently Asked Questions

1. What is the HPE 876867-001 used for?

HPE 876867-001 is an internal SAS/SATA storage backplane cable listed in the ProLiant DL360 Gen10 maintenance documentation. It is used in supported connections between a drive backplane and a Type-p Smart Array controller.

2. Is HPE 876867-001 a complete server backplane kit?

HPE identifies 876867-001 as a cable part number. It should not be assumed to include a backplane board, drive cage or hard drives. Confirm the exact contents of the seller’s listing.

3. Is HPE 876867-001 compatible with the DL360 Gen10 2SFF backplane?

Yes. HPE documents its use between a 2SFF SAS/SATA backplane and a supported Type-p Smart Array controller. Compatibility depends on the server’s controller and cabling configuration.

4. Can I use HPE 876867-001 with any Smart Array controller?

No. Different controller types and installation positions may require different cables. Check the DL360 Gen10 cabling guide before purchasing.

5. Can I buy HPE 876867-001 in New or Refurbished condition in the UK?

Euroland IT Store offers New and Refurbished enterprise hardware options, subject to availability. UK customers can enquire about the specific cable, its condition, warranty, pricing and delivery arrangements.
