Global leader in new, refurbished, compatible & discontinued multivendor IT-Hardware, spares and print supplies.
| Part Number: | P12341-003 |
|---|---|
| Manufacturer: | HPE |
| Backup & Storage: | Server Hard Drive |
| Model: | MSA 1050/MSA 2050 |
| Description: | Buy HPE P12341-003 14TB SAS 7.2K LFF 512e Hard Drive. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |
HPE P12341-003 is an assembly number for the HPE MSA 14TB SAS 12G 7.2K LFF Midline 512e hard drive. Resellers tie it to option kit R0Q21A and spare part P11785-001, and the drive comes in the HPE MSA LFF carrier for Modular Smart Array enclosures.

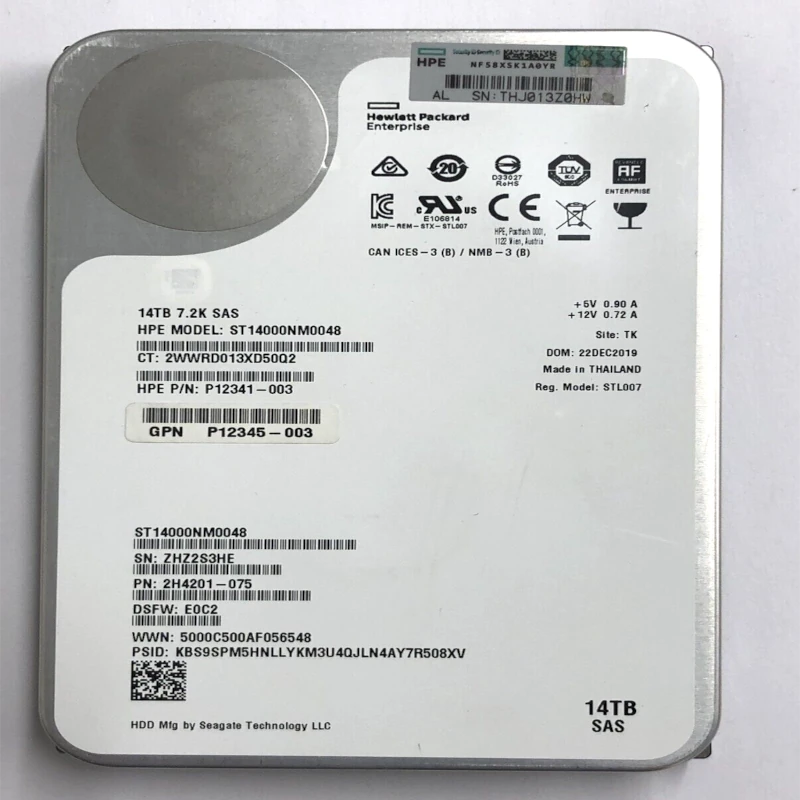

Assembly numbers like this are printed on the drive label, so P12341-003 is often the first code an engineer reads after pulling a failed disk. If that is how you arrived here, the short answer is: it is a 14TB, 3.5 inch, 7,200 rpm, dual port 12Gb/s SAS MSA drive with 512e sectors.
The P12341-003 is offered by Euroland IT Store in New or Refurbished condition, subject to current stock.
| Specification | Details |
|---|---|
| Manufacturer | HPE |
| Assembly number | P12341-003 |
| Option kit / spare | R0Q21A / P11785-001 |
| Capacity | 14TB |
| Interface | SAS 12Gb/s, dual port |
| Rotational speed | 7,200 rpm (Midline) |
| Form factor | LFF 3.5 inch |
| Sector format | 512e |
| Carrier | HPE MSA LFF carrier |
| Condition | New or Refurbished, subject to stock |
An HPE assembly number identifies the drive as built: a particular disk model with HPE firmware, fitted into a particular carrier. Above it sit the spare number used by HPE service (P11785-001) and the option kit sold to customers (R0Q21A). Resellers list Seagate ST14000NM002G and ST14000NM0048 and Western Digital WUH721414AL5204 as drive models found under this assembly.
The site title for this product does not mention MSA, but the HPE numbers linked to P12341-003 all belong to the MSA 14TB drive. We have not verified it for ProLiant servers, which use their own 14TB drives in SmartCarrier or low profile trays.
Every drive in a dual controller MSA connects to both controllers. A dual port SAS drive such as the P12341-003 has two independent links, one to each controller path. If a controller is replaced, rebooted during a firmware update or fails, the other controller still reaches every disk and keeps volumes online.
That is why HPE builds its MSA hard drives as dual port SAS units. When choosing a replacement, a dual port MSA drive keeps that redundancy intact.
A new P12341-003 suits anyone building a fresh disk group or replacing drives in an array still under a strict maintenance contract. Check the product page for the warranty supplied with new units.
Refurbished P12341-003 drives provide an affordable like-for-like disk for MSA systems that are well into service. Please confirm the refurbished condition and warranty on the product page.
Gen6 MSA systems (1060, 2060, 2062) do not accept earlier MSA drives, according to HPE. Check your array model and the label on your current drive before you order.
For the spare number of this drive, see HPE P11785-001. Other drives from the same MSA 2050 option list in our catalogue include the HPE J9F42A MSA 600GB 15K, the HPE Q1H47A MSA 900GB 15K and the HPE P9M81A MSA 1.2TB self-encrypting drive. The HPE R0Q74A MSA 2060 storage is a Gen6 system and needs Gen6 drives instead. You can also browse our array drive range.
If you want more capacity rather than a straight swap, adding a new disk group of 14TB drives is cleaner than replacing smaller drives one at a time. A new group lets you use the full 14TB of each disk straight away, while a single 14TB disk inside a group of 10TB drives only contributes 10TB until every member has been upgraded.
Euroland IT Store supplies the UK’s businesses, IT teams, resellers and repairers with HPE storage parts. Visit the product page for the latest condition, warranty, stock and delivery information. We waive mainland UK shipping charges on orders over £100 + VAT. Send us your MSA model and the label details of your current drive, or call 0203 209 6002, and we will help confirm the part.
The numbers linked to P12341-003 belong to the HPE MSA 14TB drive, option R0Q21A, so we treat it as an MSA array drive and have not verified it for ProLiant servers.
It suits the MSA 2050 and 2052, and resellers also list MSA 2040 and 2042 LFF systems; HPE Gen6 MSA arrays do not take it.
Yes, both conditions are offered subject to stock, with New suiting fresh builds and Refurbished suiting cost-conscious replacements.
Warranty terms vary by condition and are listed on the product page.
Delivery options are shown on the product page, and free shipping on orders over £100 + VAT applies to UK mainland addresses.
