Global leader in new, refurbished, compatible & discontinued multivendor IT-Hardware, spares and print supplies.
| Part Number: | 877946-001 |
|---|---|
| Manufacturer: | HPE |
| Servers Spare Parts: | Riser card |
| Model: | DL380 G10 |
| Description: | Buy HPE 877946-001 DL380 G10 PCIe Riser Card. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

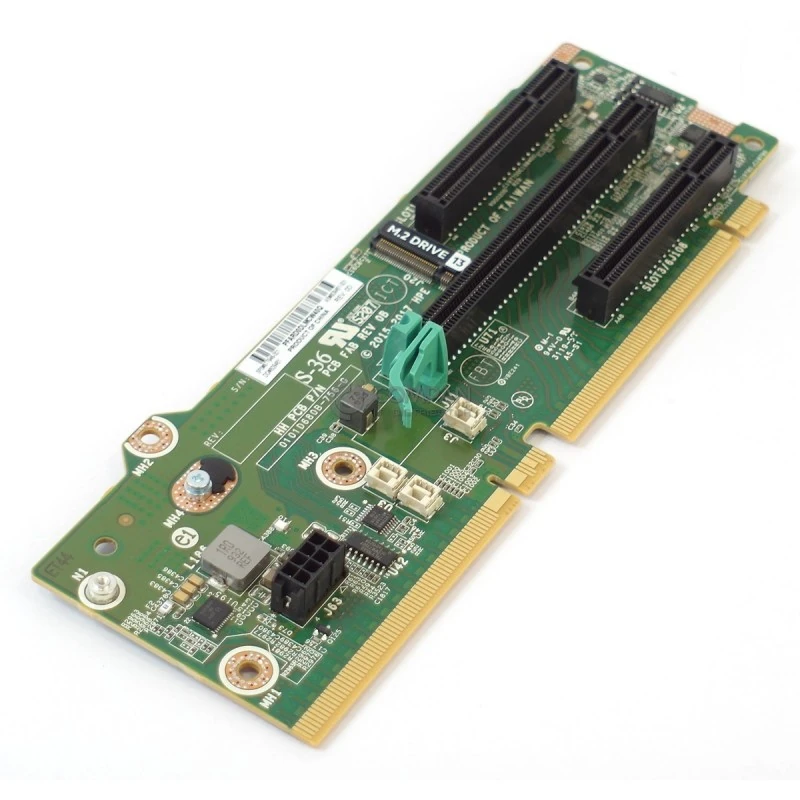

The HPE 877946-001 is a PCIe M.2 riser board designed for the HPE ProLiant DL380 Gen10 server. It provides additional PCIe expansion connections and M.2 storage support within the server chassis.
This replacement component is useful when an existing riser board becomes faulty or when restoring the original expansion configuration of a DL380 Gen10 server. It supports compatible PCIe devices, including network adapters and storage controllers, subject to the server’s hardware requirements.
| Specification | Details |
|---|---|
| Manufacturer | HPE |
| Part Number | 877946-001 |
| Product Type | PCIe M.2 Riser Board |
| Supported Server | HPE ProLiant DL380 Gen10 |
| PCIe Expansion Configuration | 2 x8 and 1 x16 |
| PCIe Generation | PCI Express Gen3 |
| M.2 Support | Yes, subject to configuration |
| Installation | Internal Server Riser Assembly |
| Related Standard Riser | 875058-001, different riser variant |
| Condition | New or Refurbished, subject to availability |
A PCIe riser board allows expansion cards to be installed in the correct position inside a rack server. Instead of connecting directly to a conventional motherboard slot, compatible expansion cards connect through the riser assembly.
The HPE 877946-001 provides PCIe connections for supported server components while accommodating the physical layout of the DL380 Gen10 chassis.
It is particularly relevant when maintaining systems fitted with additional networking or storage hardware.
The 877946-001 riser combines PCIe expansion with M.2 support. Its configuration is identified as two x8 connections and one x16 connection.
Depending on the server configuration, the riser can accommodate supported PCIe expansion cards and M.2 storage devices.
Before adding hardware, check the available PCIe lanes, supported slot position, M.2 device requirements and any restrictions associated with the server’s processor configuration.
Important: The riser board is not itself an SSD or RAID controller. M.2 drives and PCIe expansion cards should not be assumed to be included.
A replacement PCIe riser may be required if the original board has physical damage, damaged connectors or a confirmed hardware fault.
Possible symptoms include an expansion card not being detected or repeated hardware errors involving a PCIe slot.
However, these symptoms can also be caused by an expansion card, firmware issue or another server component. Check the hardware diagnostics before replacing the riser.
HPE lists part number 877946-001 in the DL380 Gen10 server’s PCI riser board spare parts catalogue.
Before ordering, confirm:
Do not assume that every DL380 Gen10 PCIe riser is interchangeable. HPE lists several different riser designs for this server, each with its own slot configuration and purpose.
A New or unused HPE 877946-001 may be suitable for planned server maintenance or keeping a replacement component for an existing DL380 Gen10 system.
Confirm whether the available item is unused legacy stock and whether the required mounting hardware is included.
A Refurbished riser board can provide a cost-conscious solution when maintaining older enterprise servers.
Before purchasing, ask whether the board has been inspected for connector damage and tested for supported PCIe device detection.
For both conditions, confirm the supplied components, warranty and UK delivery arrangements.
Replacing a riser board requires the server to be powered down and disconnected from its power sources.
Follow the HPE ProLiant DL380 Gen10 Maintenance and Service Guide when removing the riser assembly and transferring any existing expansion cards.
Check that the replacement is correctly seated and that all expansion cards, brackets and slot covers are secured before restarting the server.
After installation, review the server’s hardware inventory and confirm that the expected PCIe devices are detected.
Explore other HPE products for DL380 Gen10 maintenance and upgrades:
Related products are provided for browsing. Compatibility with the riser or server must be checked separately, and these items are not included with HPE 877946-001.
Euroland IT Store helps UK businesses source HPE server riser cards, expansion components and replacement hardware.
Contact our team to check availability in New or Refurbished condition, included accessories, warranty and UK delivery.
For a replacement enquiry, provide your server model and the part number printed on your existing riser board.
Request a Quote for HPE 877946-001
HPE 877946-001 is a PCIe M.2 riser board spare part for the HPE ProLiant DL380 Gen10 server.
The riser is identified by HPE as a 2 x8, x16 PCIe M.2 riser, providing two x8 and one x16 expansion connections.
Yes. It is an M.2-capable PCIe riser. Check the server configuration and supported M.2 devices before installation. SSDs are not automatically included.
No. HPE lists 877946-001 as a PCIe M.2 riser and 875058-001 as a separate PCIe riser variant. Confirm the required part number before ordering.
New and Refurbished options may be available through Euroland IT Store. Contact the team to confirm availability, testing, warranty and UK delivery.
