Global leader in new, refurbished, compatible & discontinued multivendor IT-Hardware, spares and print supplies.
| Part Number: | 830270-201 |
|---|---|
| Manufacturer: | HPE |
| Servers Spare Parts: | Server Power Supply |
| Model: | Proliant DL380 (G10) |
| Description: | Buy HPE 830270-201 Proliant DL380 1600W Power Supply. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

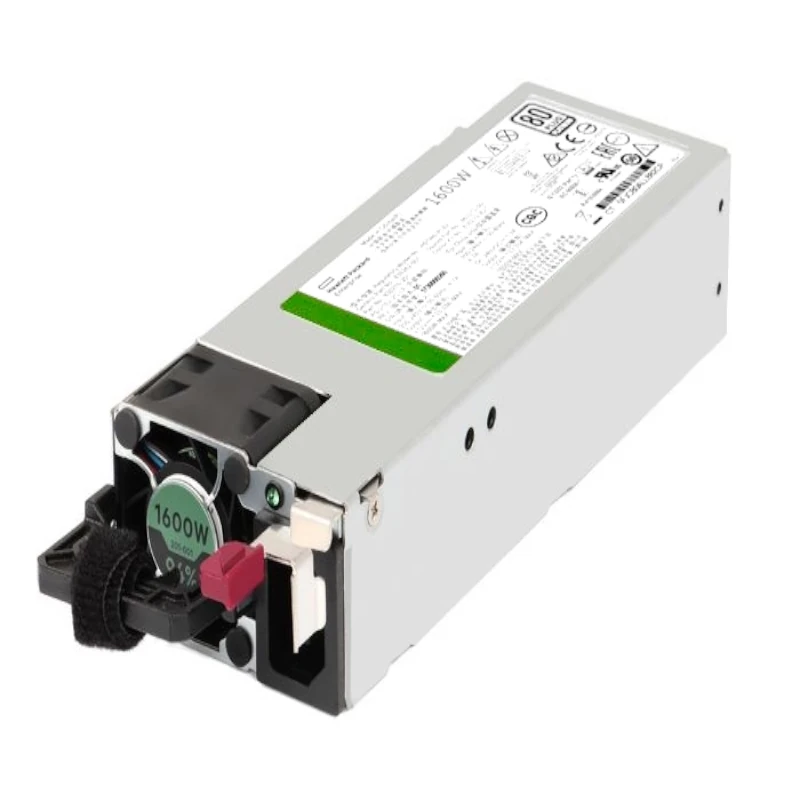

If the label on a failed ProLiant power supply reads 830270-201, you are looking at an assembly number for the HPE 1600W Flex Slot Platinum Hot Plug Low Halogen power supply. The same supply is sold under option kit 830272-B21, carries spare number 863373-001 and generic number 830262-001, and has the regulatory model HSTNS-PL62.
The unit is used in HPE ProLiant Gen10 rack and tower servers including the DL380 Gen10, where heavy processor, memory and accelerator loads call for more headroom than an 800W supply provides. It is hot plug, so a redundant server can stay online while the faulty unit is replaced.
Both New and Refurbished options are offered, subject to stock. The condition and warranty for each are displayed when you select that option.
HPE uses option kit numbers (ending in -B21) for ordering, spare numbers for service replacements and assembly numbers for the physical build that leaves the factory. The assembly number is the one printed on the product label, and it can change when production moves to a new revision or supplier while the specification stays the same.
For the 1600W Flex Slot Platinum unit, suppliers list 830270-201 and 830270-301, and a -202 build also appears in the market. They are all versions of the same supply, sharing the 863373-001 spare number. When pairing supplies for redundancy, match the spare number rather than the exact assembly suffix.
This is a high line supply. HPE rates it for 200 to 240V AC, 50 to 60 Hz, and it does not accept 100 to 120V input. On a UK 230V circuit it delivers its full 1600W, drawing roughly 7.5A at full load according to HPE data, and up to 8.7A at 200V. Its single +12V output is rated at around 133A.
In a redundant pair, the server should be planned around the output of one supply, not both added together. Two 830270-201 units therefore give you 1600W with full redundancy, which is why this wattage is often chosen for dual processor builds with GPUs or many drives. HPE’s power advisor tool or the server QuickSpecs can help you confirm the load.
Flex Slot supplies slide into the rear bay and latch without tools. To replace a failed unit in a redundant server, check the other supply is healthy in iLO, disconnect the power cord from the failed one, press the release tab and slide it out, then push in the replacement until it clicks and reconnect the cord. HPE advises that low halogen Flex Slot supplies are not used in Gen9 servers, and that supplies of different types are not mixed in one server.
New units suit projects where unused stock is preferred, for example a new redundant build. Condition and warranty are shown with this option.
Refurbished units are a sensible choice for replacing a single failed supply at lower cost. Condition and warranty are also shown with the option.
| Specification | Details |
|---|---|
| Assembly number | 830270-201 |
| Other assembly | 830270-301 |
| Option kit | 830272-B21 |
| Spare number | 863373-001 |
| Generic number | 830262-001 |
| Model | HSTNS-PL62 |
| Output | 1600W, +12V at about 133A |
| Input | 200 to 240V AC, 50 to 60 Hz |
| Rated input | 1736 VA at 200V |
| Efficiency class | 80 PLUS Platinum |
| Form factor | HPE Flex Slot, hot plug, low halogen |
| Size | About 68 x 226 x 41 mm |
| Condition options | New, Refurbished |
We offer UK delivery, with the available choices listed at checkout. Not sure which supply you have? Send us the server model, serial number and a photo or the text from the power supply label, and we will confirm the match.
It is an assembly number for the HPE 1600W Flex Slot Platinum Hot Plug Low Halogen power supply, the unit sold as option kit 830272-B21 and spare 863373-001.
Both are assemblies of the same 1600W supply and share spare number 863373-001, so they can be used together as a redundant pair.
No. The 1600W Flex Slot Platinum unit only accepts 200 to 240V AC, so it needs a high line circuit such as standard UK 230V mains.
Not in a redundant setup. With 1+1 redundancy the server is planned around one supply, so the usable budget stays at 1600W.
Select New or Refurbished on the product page to see its condition and warranty. UK delivery options are shown at checkout.
