HPE 830262-001 Proliant DL380 1600W Power Supply

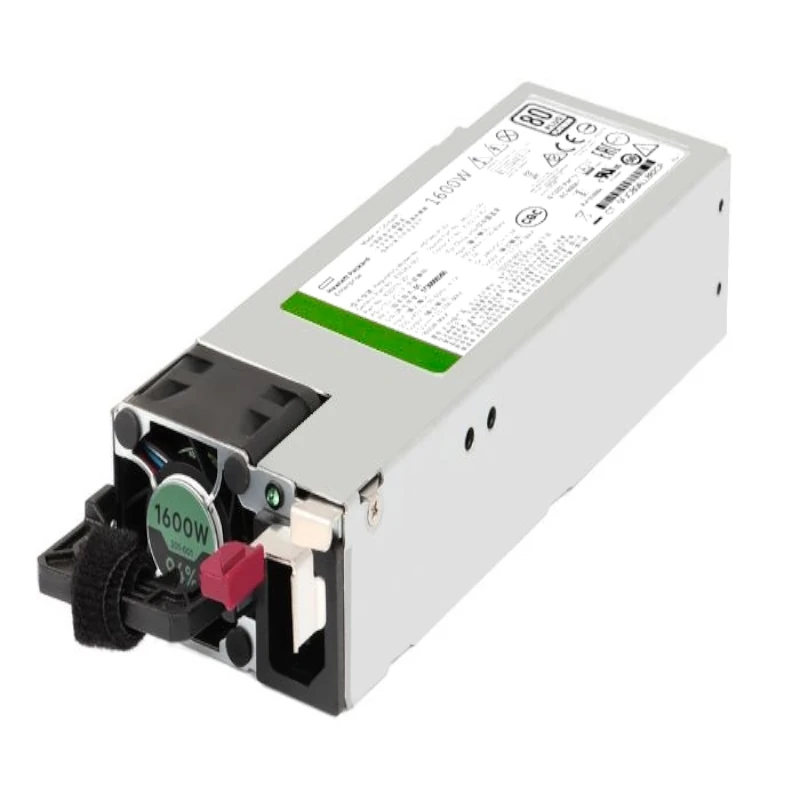

HPE 830262-001 1600W Flex Slot Platinum Hot Plug Power Supply

HPE 830262-001 is the generic part number for the HPE 1600W Flex Slot Platinum Hot Plug Low Halogen power supply. It is the same unit sold as option kit 830272-B21 and supplied by HPE service as spare 863373-001, and it is used in ProLiant Gen10 servers such as the DL380 Gen10, DL360 Gen10 and ML350 Gen10.

It is a common choice for servers with two high wattage processors, accelerators or full drive cages. It slides into the rear power bay without tools and can be changed while the server keeps running on a second supply.

We list 830262-001 in New and Refurbished condition, subject to stock. Condition and warranty are shown on the product page for whichever option you choose.

Key Features At A Glance

• 1600W output for HPE ProLiant Gen10 servers
• 80 PLUS Platinum efficiency rating
• Hot plug Flex Slot design, no tools needed
• Supports redundant 1+1 operation with a matching second unit
• Low halogen build
• Same unit as option kit 830272-B21

Understanding The 830262-001 Part Number

HPE gives one physical power supply several numbers depending on how it is sold. Knowing which is which helps when you compare quotes or match a label:

• 830272-B21 is the option kit number used when the supply is bought as an upgrade or for a new build.
• 863373-001 is the spare number used by HPE service for replacements.
• 830262-001 is the generic number that HPE documentation lists alongside the spare.
• 830270-201 and 830270-301 are assembly numbers you may find printed on the unit label.
• HSTNS-PL62 is the regulatory model number on the label.

Any of these numbers on your existing supply points to the same 1600W Flex Slot Platinum unit.

1600W Needs A High Line Supply

Unlike lower wattage Flex Slot units, this power supply does not support low line 100 to 120V input. HPE specifications show an input range of 200 to 240V AC at 50 to 60 Hz, and the full 1600W is available across that range. In the UK, where mains is nominally 230V, that is not a problem, but it does matter if a server is moved to a site using 110V circuits.

At 230V, HPE lists an input current of about 7.5A and an efficiency of around 92.7% at full load. At 200V the current rises to about 8.7A. Plan PDU capacity on these figures rather than on the 1600W label alone, especially when two supplies share a rack circuit.

Hot Plug, Redundancy And Mixing

With two matching supplies fitted, the server can run on one while the other is removed. HPE advises against mixing different supplies in the same server, as this can limit or disable features such as redundancy, so pair 830262-001 with another 1600W Flex Slot Platinum unit with the same spare number. HPE also notes that low halogen Flex Slot supplies are not compatible with Gen9 servers.

New HPE 830262-001 Power Supply

A new unit is a good fit for a fresh build or a planned redundancy upgrade. Its condition and warranty appear when you select it.

Refurbished HPE 830262-001 Power Supply

A refurbished unit offers a cost effective replacement for a failed supply. The page shows condition and warranty for this option too.

HPE 830262-001 Technical Specifications

Compatible HPE ProLiant Servers

• HPE ProLiant DL360 Gen10 and DL380 Gen10
• HPE ProLiant DL560 Gen10 and DL580 Gen10
• HPE ProLiant ML350 Gen10
• Not compatible with Gen9 servers

Some suppliers also list Gen10 Plus servers. Always check the power supply options in the QuickSpecs for your exact server.

Related HPE Part Numbers

• HPE 830272-B21 1600W Flex Slot Platinum option kit
• HPE 863373-001 1600W spare power supply
• HPE 830270-301 1600W assembly
• HPE 830270-201 1600W assembly
• HPE 865438-B21 800W Flex Slot Titanium supply
• HPE A0K04A 1.37m C13 to C14 power cable
• Server power supply range

How To Check This Is The Right Replacement

• Read the label on the fitted supply for 830262-001, 863373-001, 830272-B21, 830270-201 or 830270-301.
• Confirm the label shows 1600W and a 200 to 240V input range.
• Check that the server is a supported Gen10 model, not Gen9.
• Make sure the other supply in the server is the same type.

Buying HPE 830262-001 in the UK

Delivery is available across the UK, with options shown at checkout. If you want us to check compatibility, send the server model, serial number and the label details of your current power supply.

Frequently Asked Questions

Is 830262-001 the same power supply as 830272-B21?

Yes. 830272-B21 is the option kit number and 830262-001 is the generic number for the same 1600W Flex Slot Platinum unit. HPE service supplies it as spare 863373-001.

Can I run the 830262-001 on a 110V supply?

No. This 1600W unit needs a high line input of 200 to 240V AC. UK mains at 230V is fine.

Can I swap this power supply without shutting down the server?

Yes, if a second working supply is fitted. The Flex Slot design is hot plug, so one unit can be removed while the other carries the load.

Can I pair 830262-001 with an 800W supply in the same server?

HPE advises against mixing supplies, as it can limit or disable redundancy. Use two 1600W Flex Slot Platinum units with the same spare number.

Where do I find the warranty for the new and refurbished units?

The condition and warranty are shown on the product page when you select New or Refurbished. UK delivery options are listed at checkout.
