Global leader in new, refurbished, compatible & discontinued multivendor IT-Hardware, spares and print supplies.
| Part Number: | 765466-S21 |
|---|---|
| Manufacturer: | HPE |
| Backup & Storage: | Server Hard Drive |
| Model: | BL460c Gen10/Gen8, DL20 Gen10, DL360 Gen10/Gen9, DL360e Gen8, DL360p Gen8, DL380 Gen10/Gen9, DL380e Gen8, DL380p Gen8 |
| Description: | Buy HPE 765466-S21 2TB 12G SAS 7.2K 2.5 Hard Drive. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

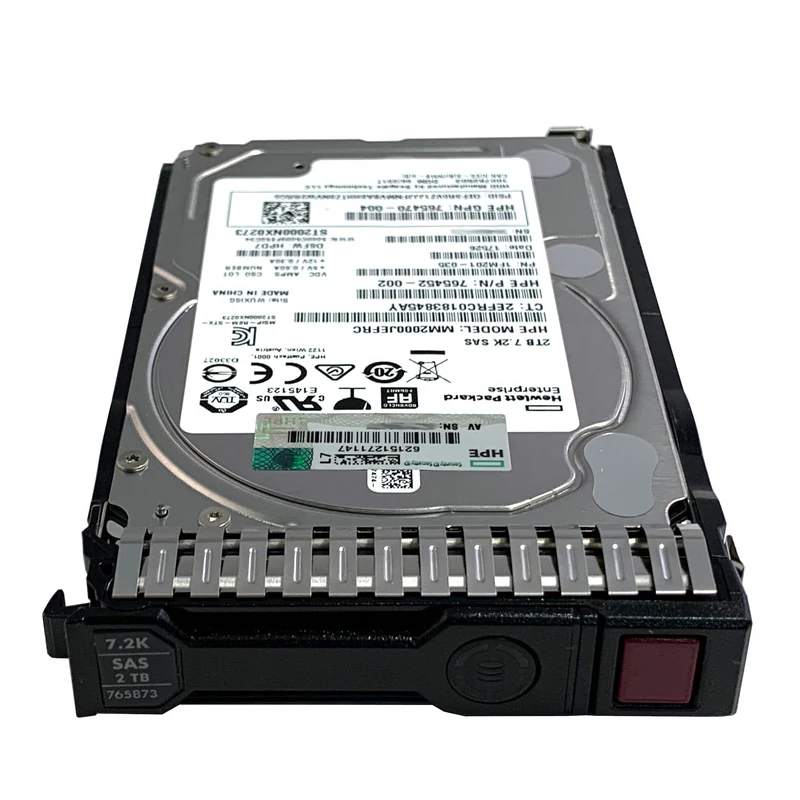

For HPE ProLiant servers that need high capacity in a 2.5 inch bay, the HPE 765466-S21 offers 2TB of Midline storage over a 12Gb/s SAS connection. The drive turns at 7,200 rpm, uses 512e Advanced Format sectors and is listed with HPE Digitally Signed firmware in the SmartDrive Carrier (SC).
It is aimed at server owners who want to pack more terabytes into SFF chassis without moving to large form factor drives. Common jobs include virtual machine storage for lighter workloads, backup repositories, media libraries and shared departmental folders. Compared with the SATA version of this capacity, the SAS interface adds dual ports and full SAS error handling.
Buy the 765466-S21 from Euroland IT Store in New or Refurbished condition, subject to current stock.
| Specification | Details |
|---|---|
| Part number | 765466-S21 |
| Related option kit | 765466-B21 |
| Spare part | 765873-001 |
| Drive model | MM2000JEFRC |
| Assembly number | 765470-003 |
| Capacity | 2TB |
| Interface | SAS 12Gb/s, dual port |
| Rotational speed | 7,200 rpm |
| Class | Midline |
| Sector format | 512e |
| Form factor | 2.5 inch SFF |
| Carrier | SmartDrive Carrier (SC) |
| Condition | New or Refurbished, subject to stock |
This number is a catalogue variant of the HPE option kit 765466-B21. UK distributor catalogues give 765466-S21 the same 2TB SAS 12G Midline 7.2K SFF SC 512e description as the B21 kit. The HPE spare part for this drive is 765873-001 and the drive model is MM2000JEFRC.
Getting the number right matters because there are two 2TB SFF Midline drives in this HPE family. The SAS one covered here and the SATA 6G one (765455-B21) look almost identical in their carriers. Mixing them in one logical drive is not recommended, so check the interface on your label before you order.
SAS drives have two independent ports. In a standard ProLiant with a single controller, only one is used. In setups with dual-domain cabling or external enclosures, the second port gives a backup path, so a failed cable or expander does not take the drive offline. SATA drives do not offer this.
SAS also gives the controller richer error reporting and better command queuing. For a capacity tier that runs around the clock, these features make faults easier to spot early through HPE pre-failure alerts.
A 512e drive writes 4K physical sectors internally but talks to the host in 512-byte blocks. Current Windows Server, Linux and VMware ESXi releases align partitions correctly. If you run a much older operating system, check that partitions are aligned to 4K, as misalignment can cut write performance noticeably.
New units are best when you are filling empty bays in a recently purchased server or want a drive with no previous running hours. Details of condition and warranty for New stock are on the product page.
For replacing a single failed drive in an existing array, a Refurbished 765466-S21 keeps costs down while matching the original specification. Please read the product page for the condition and warranty of Refurbished stock.
Use this list as a guide. Confirm your server model, the controller and the part numbers printed on your existing drive before ordering.
The standard option kit is HPE 765466-B21, and the spare part version is HPE 765873-001. The drive model is HPE MM2000JEFRC.
Smart Array will accept a larger drive as a replacement, but only the capacity of the smallest member is used. Speed is also limited by the slowest drive. The cleanest result comes from keeping every drive in a logical drive the same model, so a direct match like this one avoids wasted capacity and uneven performance.
We supply UK companies, IT teams, resellers and repairers with server drives and spares. The product page lists the current condition, warranty, stock and delivery options. UK mainland deliveries are free on orders over £100 + VAT. Share your server model and the existing drive’s part numbers with our team for a quick check, or call 0203 209 6002.
Yes, it is listed for HPE ProLiant Gen10 servers with SFF SmartDrive bays, such as the DL360 and DL380 Gen10, and also for many Gen8 and Gen9 models.
The 765466-S21 is SAS, and HPE advises against mixing SAS and SATA drives within the same logical drive, so pair it with matching 2TB SAS Midline drives.
New drives are unused and suit fresh deployments, while Refurbished drives are lower-cost units well suited to replacing a failed disk.
Warranty terms for each condition are shown on the product page, and our sales team can confirm them before you order.
Delivery is free to UK mainland addresses when your order is over £100 + VAT.
