| Part Number: | 765452-002 |
|---|---|
| Manufacturer: | HPE |
| Backup & Storage: | Server Hard Drive |
| Model: | BL460c Gen10/Gen8, DL20 Gen10, DL360 Gen10/Gen9, DL360e Gen8, DL360p Gen8, DL380 Gen10/Gen9, DL380e Gen8, DL380p Gen8 |
| Description: | Buy HPE 765452-002 2TB 12G SAS 7.2K 2.5 Hard Drive. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

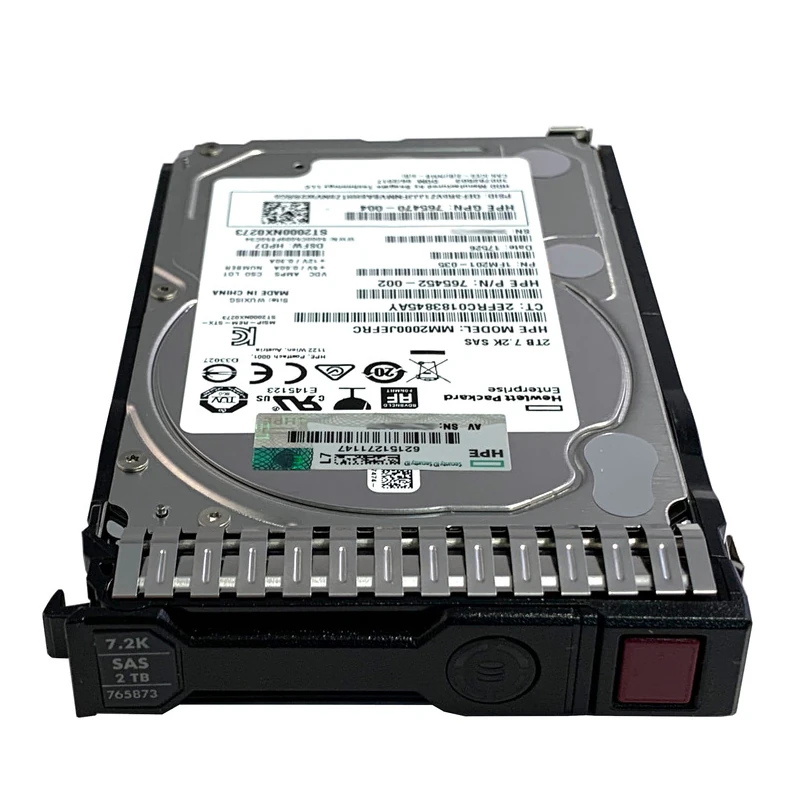

The HPE 765452-002 is a 2TB, 2.5-inch small form factor (SFF) hard drive with a 12Gb/s SAS interface and a 7,200 rpm spindle speed. It is used in HPE ProLiant servers where large capacity matters more than raw speed, such as file shares, backup targets and archive volumes.
Part number 765452-002 identifies the drive itself. It is commonly listed alongside HPE option number 765466-B21, HPE spare number 765873-001 and drive model MM2000JEFRC, which helps when you are matching a failed disk from an existing array.
Euroland IT Store offers this drive in New and Refurbished condition, subject to current stock.
The 765452-002 is a spinning hard disk drive (HDD) rather than an SSD. It belongs to the HPE Midline family, which HPE uses for capacity-focused 7.2K drives. These sit below the 10K and 15K Enterprise drives on speed, but give you far more storage per bay.
Because it is a 2.5-inch drive, it fits the SFF bays found on many HPE ProLiant rack and blade servers. That lets you add 2TB per slot without moving to a chassis with larger 3.5-inch LFF bays.
A 7.2K drive is a sensible choice when the workload reads and writes large amounts of data in a steady way. Typical uses include:
For busy databases or virtual machines that need fast random access, a 10K or 15K drive is usually a better fit. On newer Gen10 Plus and Gen11 servers, for example, the HPE P28502-001 1.2TB 10K SAS drive trades capacity for speed. Many businesses run both types in the same server, with SSD or 10K disks for the operating system and 7.2K disks for bulk data.
Choose a New 765452-002 if your policy requires unused parts, or if you are building a fresh array and want every disk to start with no running hours. As this drive model has been on the market for several years, new stock can be limited, so check the condition shown before you order.
A Refurbished 765452-002 has been used before and prepared for resale. It is a cost-effective way to replace a failed disk in an existing RAID set or to fill empty bays in a server that is still doing a useful job. Cosmetic marks on the carrier or drive label are possible.
Warranty can differ between New and Refurbished units, so please check the warranty details shown for the condition you select.
| Specification | Details |
|---|---|
| Manufacturer | HPE |
| Part Number | 765452-002 |
| Associated Option Number | 765466-B21 |
| Associated Spare Number | 765873-001 |
| Drive Model | MM2000JEFRC |
| Product Type | Server Hard Drive (HDD) |
| Capacity | 2TB |
| Interface | SAS 12Gb/s |
| Rotational Speed | 7,200 rpm |
| Form Factor | 2.5-inch SFF |
| Drive Class | Midline |
| Condition | New or Refurbished, subject to stock |
This drive is listed for use in the following HPE ProLiant platforms:
The drive needs a free SFF bay and the right drive carrier for your server generation. If you are adding bays to a DL380 Gen9, the HPE 768857-B21 8SFF cage bay kit is one option. For a DL360 Gen9 with a faulty drive backplane, see the HPE 780428-001 backplane.
When searching for this drive you may also see these numbers:
If you need less capacity, the HPE 765452-001 1TB SAS drive is the 1TB sibling. If your server uses a SATA controller setup, the HPE 765455-S21 2TB SATA drive is the 6Gb/s SATA version.
Pull the existing drive or check your server management tool and note the following:
When replacing a disk in a RAID set, matching capacity, interface and speed helps the array controller rebuild cleanly. Mixing a 7.2K drive into an array of 10K drives, for example, will slow that array down to the speed of the slowest disk.
Euroland IT Store supplies server parts to businesses, IT support firms and resellers across the UK from our base in Stanmore, Middlesex. We offer free shipping on orders over £100 + VAT to the UK mainland. Before you buy, check the condition, warranty and stock details shown on this page.
Not sure if this drive suits your server? Send us your ProLiant model and the numbers from your current drive label, and our team will help you check. You can also browse our full range of server hard drives or other HPE spare parts.
It is a 2TB, 2.5-inch SFF hard drive with a 12Gb/s SAS interface and a 7,200 rpm spindle speed. It is part of the HPE Midline range and is used in compatible HPE ProLiant servers for capacity storage.
These numbers are commonly listed together for the same 2TB 12G SAS 7.2K SFF drive. 765466-B21 is the option kit number, MM2000JEFRC is the drive model and 765452-002 is the drive part number. Always compare them with the label on your existing drive before ordering.
It is listed for HPE ProLiant BL460c Gen8 and Gen10, DL20 Gen10, DL360 Gen9 and Gen10, DL360e and DL360p Gen8, DL380 Gen9 and Gen10, and DL380e and DL380p Gen8. Your server must have a free SFF bay and the correct carrier for its generation.
Choose New if you need an unused drive or are building a new array. Refurbished is a lower-cost way to replace a failed disk in an existing ProLiant server. Warranty can differ by condition, so check the details shown for the unit you select.
Yes. Euroland IT Store ships across the UK, with free shipping on orders over £100 + VAT to the UK mainland. Check the stock and delivery details on this page when ordering.
