| Part Number: | 729870-002 |
|---|---|
| Manufacturer: | HPE |
| Servers Spare Parts: | Server Rail Kit |
| Model: | DL180 Gen9, DL380 Gen10, DL380p Gen8 |
| Description: | Buy HPE 729870-002 2U SFF Rail Kit. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

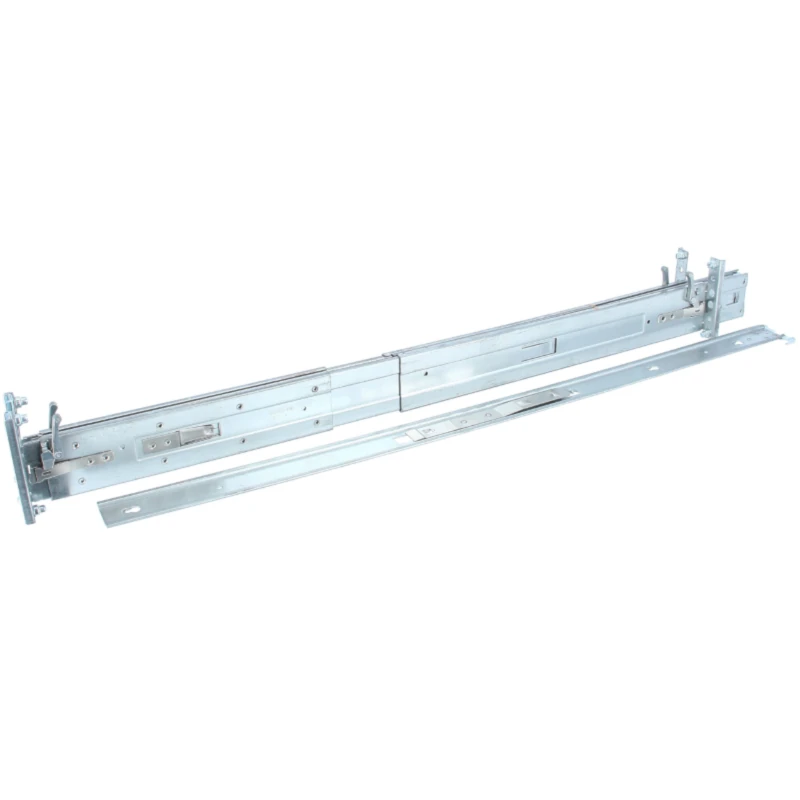

Many DL380 Gen9 servers left the factory with rails labelled 729870-002. This is a 2U small form factor rail kit from the HPE Easy Install range, and it is the same style of rail used by a number of DL380 and DL385 Gen10 systems. If you need to rack a second hand server, replace bent rails or match the kits already in your cabinet, this listing covers it.
The -002 ending is a later revision of the 729870 spare number. Resellers list 729870-002 against the same HPE option kit, 733660-B21, as the earlier 729870-001, and both suffixes are quoted for the same set of servers. We have not found an HPE note describing a functional change between the two, so the best approach is to match the label on your existing rails where you can.
The kit is offered in New and Refurbished condition, subject to stock. The warranty for each option appears on the product page.
HPE uses the last three digits of a spare number to track revisions. A change from -001 to -002 can reflect a new supplier, a manufacturing tweak or a packaging change, and the two parts are normally treated as interchangeable for the servers they are listed against. In this case both revisions appear under the 733660-B21 option kit and are sold for the DL380 Gen9 and its relatives.
Where you are racking two servers side by side, it is sensible to use matching kits so the rails look and behave the same. Within one server, always fit the left and right rails from the same kit.
The Easy Install rails are built for fast, tool free mounting in standard 19 inch racks. A DL380 Gen9 owner on the HPE community forum reported that the front bracket holes on 729870-002 rails were too small for the screws of a threaded round hole rack, while the rear fitted. If your cabinet uses threaded holes, tell us before you order so we can advise on the options.
Installation follows the usual Easy Install pattern. Attach the outer rails to the front and rear rack posts at the chosen 2U position, fit the inner sections to the sides of the server chassis, then lift the server level and slide it into the outer rails until it seats. With two people the whole job usually takes a few minutes, and the server can then be pulled forward on the rails when it needs attention.
New rails are unused and suit new rack installations or buyers who want clean, straight rails. Choose New to see the warranty.
Refurbished rails are pre-owned HPE kits and a practical choice for racking existing servers at lower cost. The warranty is shown once Refurbished is selected.
| Specification | Details |
|---|---|
| Part number | 729870-002 |
| Earlier revision | 729870-001 |
| HPE option kit | 733660-B21 |
| Kit family | HPE Easy Install rails |
| Slide mechanism | Friction |
| Server height | 2U |
| Chassis | SFF, 2.5 inch drive models |
| Shipping weight | About 9 lb (around 4 kg) as listed by one reseller |
| Optional CMA | 733664-B21 |
Only the SFF versions of these servers are covered. An LFF chassis needs the LFF rail kit, and 1U models such as the DL360 use a different 1U kit.
We ship within the UK and the delivery choices are listed at checkout. For help with fit, send us the server model and serial number, plus any label details from the rails you are replacing.
Both revisions are listed under the same HPE option kit, 733660-B21, and for the same 2U SFF servers. We have found no documented functional difference, but we recommend matching the label on your existing rails.
Yes, the DL380 Gen10 SFF is among the servers listed for this kit. LFF models of the DL380 need a different rail kit.
The Easy Install rails are made for tool free racks, and one user has reported that the front bracket holes did not take threaded rack screws. Please contact us before ordering for a threaded rack.
No. The 2U arm for Easy Install rails is sold separately as 733664-B21.
Choose New or Refurbished on the product page to see the warranty. UK delivery options are shown at checkout.
