| Part Number: | 729870-001 |
|---|---|
| Manufacturer: | HPE |
| Servers Spare Parts: | Server Rail Kit |
| Model: | DL180 Gen9, DL380 Gen10, DL380p Gen8 |
| Description: | Buy HPE 729870-001 2U SFF Rail Kit. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

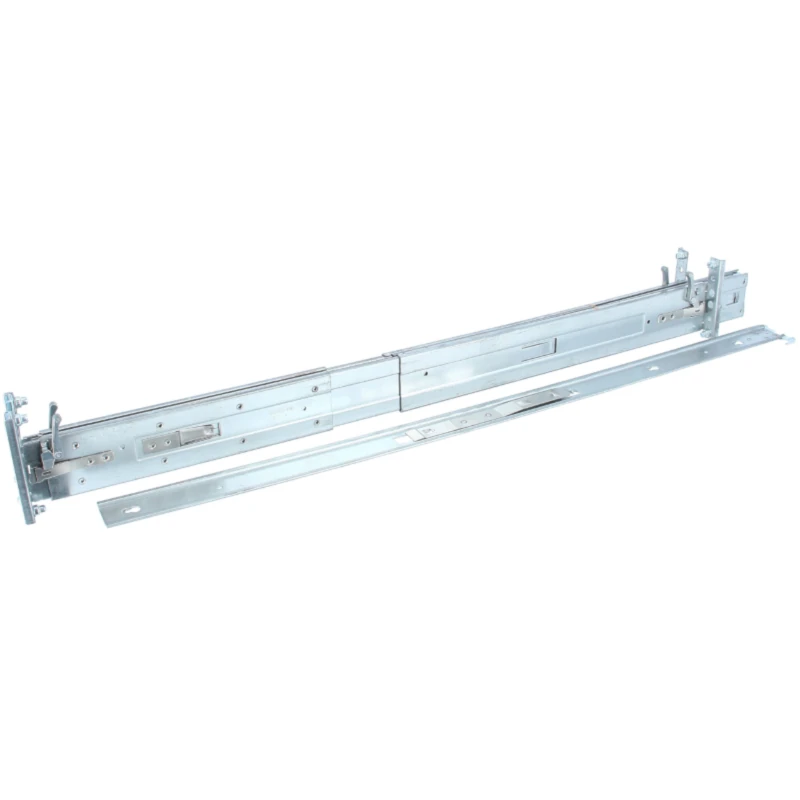

The HPE 729870-001 is a 2U rail kit for small form factor ProLiant servers, best known as the rails supplied with the DL380 Gen9. It belongs to the HPE Easy Install family, which uses friction (stab-in) rails rather than ball bearing slides, so the kit is quick to fit and lets the server be pulled forward from the rack for service.
729870-001 is a spare part number. Resellers tie it to the HPE option kit 733660-B21, the 2U Small Form Factor Easy Install Rail Kit, which is the number you would see on a new boxed kit. If a server has arrived without rails or has been moved to a new cabinet, this is a common way to get it mounted again.
We sell the 729870-001 in New and Refurbished condition, subject to stock. Pick a condition on the product page to see the price and warranty.
HPE offers two main rail styles for its rack servers. Easy Install rails, like this kit, are friction rails: the server sits on the inner rail sections and slides on them without a bearing carriage. They are lighter, cheaper and very quick to install, and they suit most service tasks where the server only needs to come forward to reach drives, power supplies or the top cover.
Ball bearing kits travel more smoothly and are the usual choice where a server is pulled out often or where a heavier cable management setup is used. If your current rack uses ball bearing rails on other servers, the two styles can sit in the same rack, but each server should use a matched pair of rails from the same kit.
The kit does not include a cable management arm. HPE sells the 2U CMA for Easy Install rails as 733664-B21, and also offers 733668-B21, which bundles the SFF rails with an arm. Fit a CMA if you want to slide the server out with its cables still connected.
The rails are designed for tool free fitting in standard 19 inch four post racks. If your rack has threaded round holes, ask us before ordering, as at least one user has reported that the front bracket holes on this rail family do not take threaded rack screws without modification.
A New kit is unused and is the best fit for a fresh rack build or where you want clean, undamaged rails. The warranty shows once you select New.
A Refurbished kit is a pre-owned set of HPE rails, offered as a lower cost way to rack an existing server. Select Refurbished to see the warranty that applies.
| Specification | Details |
|---|---|
| Spare part number | 729870-001 |
| Related option kit | 733660-B21 |
| Product type | 2U SFF Easy Install rail kit |
| Rail type | Friction, slide out for service |
| Rack height | 2U |
| Drive cage type | Small form factor (SFF) chassis |
| Rack standard | 19 inch, four post |
| Installation | Tool free Easy Install design |
| Cable management arm | Not included, optional 733664-B21 |
| Related revision | 729870-002 |
Spares sources list this rail family for the following 2U SFF servers:
Large form factor (3.5 inch) versions of these servers use a different kit, such as the 2U LFF Easy Install rails. If you are unsure which drive cage your server has, send us the model and serial number.
UK delivery is available, with options displayed at checkout. To double check fit, contact us with the server model, serial number and the details on any existing rail labels.
It is listed for 2U SFF servers including the ProLiant DL380 Gen9, DL180 Gen9, DL380 Gen10, DL385 Gen10 and DL380p Gen8. LFF versions need a different kit.
No. The arm is a separate option, HPE 733664-B21. You can also choose the 733668-B21 kit, which combines SFF rails with an arm.
The Easy Install rails are designed to fit standard 19 inch four post racks without tools. For racks with threaded holes, please ask us first.
733660-B21 is the HPE option kit number for the 2U SFF Easy Install rails, and 729870-001 is the spare number linked to it. Either number points to the same rail family.
Yes. We deliver across the UK and the delivery options are shown at checkout. The warranty for new or refurbished rails is shown when you choose the condition.
