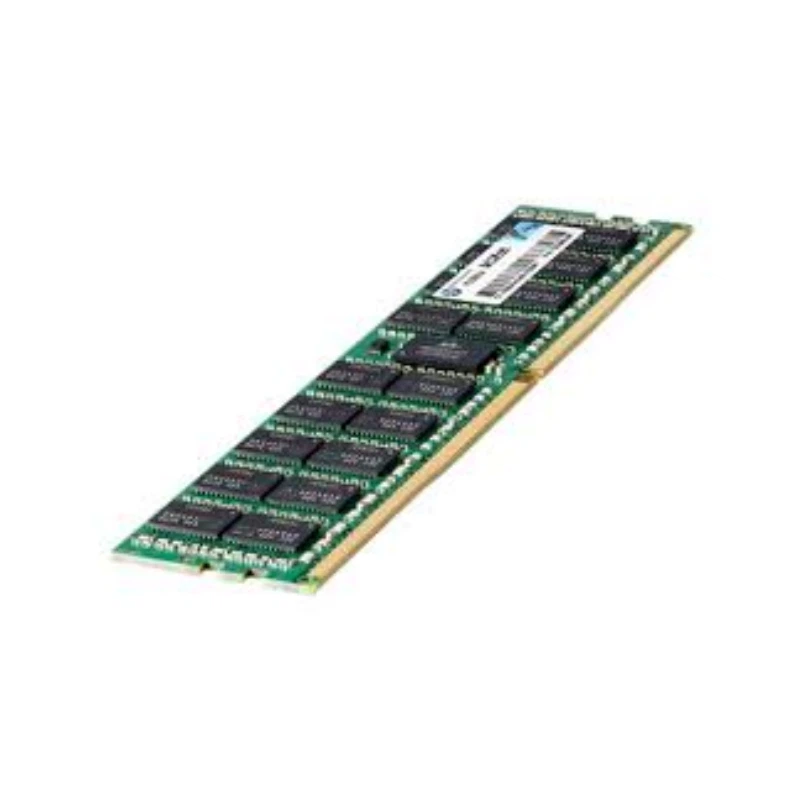

HPE P64705-B21 16GB DDR5-5600 Smart Memory Kit

HPE P64705-B21 is the purchasing option for a 16GB DDR5-5600 SmartMemory upgrade used with supported HPE compute platforms. HPE specifies one 16GB single-rank x8 RDIMM, rated at 5600 MT/s with CAS-46-45-45 timings and EC8 Registered Smart Memory. This page focuses on the option-kit role: it is the number most useful when a server build or planned capacity upgrade calls for the HPE 16GB DDR5-5600 kit. The related service and assembly references are P65253-001 and P53624-0A1, but they serve different identification purposes.

Why a 16GB DDR5 Module Can Be the Right Upgrade

Not every server requires the highest-capacity DIMM. A 16GB module can suit entry configurations, infrastructure services, development systems and workloads where memory demand is moderate. It can also provide a controlled way to expand a server while following its supported channel population rules. The rated 5600 MT/s speed describes the DIMM itself. HPE notes that maximum memory speed depends on the server, processor and memory configuration, so installed modules may operate below their native rating in some supported configurations.

Option Kit Specification

Three References, Three Jobs

HPE P65253-001 is the service spare, while HPE P53624-0A1 is the assembly reference documented in HPE’s memory matrix. Keeping these identities together helps when the number on a DIMM, service guide and purchase order differs even though each points to the same 16GB DDR5-5600 family.

Planning the Complete Server

Memory works best as part of the server design. The HPE P52499-B21 DL360 Gen11 8SFF CTO Server is a configurable platform where processor choice, memory population, networking and storage are selected around the workload. The HPE P26987-001 Broadcom 10Gb 2-port BASE-T adapter provides one supported networking path, while HPE P47952-001 MR416i-o controller addresses Gen11 storage control.

16GB DDR5-5600 versus Higher-Capacity Memory

The HPE P69728-B21 64GB DDR5-6400 SmartMemory kit belongs to a different memory family. It should not be treated as a simple four-times-larger substitute. Processor generation, supported speed, capacity requirements and DIMM population all matter. A smaller 16GB module can be appropriate where cost, workload size and future expansion plans favour lower initial capacity.

Capacity Planning before Filling More Slots

For systems expected to grow, DIMM slot usage is worth considering before purchase. A 16GB module keeps initial cost and capacity modest, but larger modules can preserve slots for future expansion. The best choice depends on processor count, available channels, workload growth and the supported population sequence for the server.

New and Refurbished SmartMemory

New P64705-B21 kits suit fresh server builds and planned upgrades. Refurbished HPE SmartMemory can be practical for compatible systems already deployed, particularly when maintaining a standardised memory family. The server’s supported population rules remain the same regardless of condition.

Storage Is a Separate Upgrade Decision

A memory upgrade does not address storage capacity or I/O. The HPE P49746-001 1.6TB SAS Mixed Use SSD provides enterprise SAS flash, while the HPE P41074-001 480GB SATA Read Intensive SSD targets another interface and workload. Keeping memory and storage planning separate helps each bottleneck receive the appropriate component.

Where a 16GB Module Fits Best

A 16GB RDIMM can be a sensible building block for infrastructure services, management servers, development environments and applications whose working set does not justify a high-capacity DIMM. It also gives organisations a lower-cost entry point when a server is being commissioned with modest memory demand. The trade-off is slot consumption. If the workload is expected to grow substantially, fewer higher-capacity modules may leave more room for future expansion. That decision is best made before the first upgrade rather than after most memory slots are already occupied.

SmartMemory Qualification Has Practical Value

HPE SmartMemory is tested and qualified for supported HPE compute platforms. That platform qualification is useful in enterprise environments where firmware, processor generation and memory population all interact. It does not remove the need to use the server QuickSpecs, but it gives administrators an HPE-defined module identity rather than a generic DDR5 specification. For estates with several similar servers, standardising on documented HPE option and spare numbers can also simplify stock control and future service work.

Order P64705-B21 by the Upgrade SKU

Euroland IT Store can help source HPE P64705-B21 in New or Refurbished condition where available. Use the option-kit reference for a supported 16GB DDR5-5600 SmartMemory addition, or the related spare and assembly numbers when working from service documentation or an installed module.

HPE P64705-B21 FAQs

What is HPE P64705-B21?

It is the option-kit number for one 16GB single-rank x8 DDR5-5600 HPE Registered SmartMemory module.

What is the native memory speed?

5600 MT/s.

What spare number corresponds to P64705-B21?

HPE lists P65253-001 as the service spare.

What assembly number is related to this kit?

P53624-0A1.

Is the module single-rank or dual-rank?

It is single-rank x8.

Will it always run at 5600 MT/s?

Not necessarily. Effective memory speed depends on the supported server, processor and DIMM configuration.
