| Part Number: | P43333-0A1 |
|---|---|
| Manufacturer: | HPE |
| Servers Spare Parts: | Server Memory Kit |
| Model: | Gen11 Servers |
| Description: | Buy HPE P43333-0A1 64GB DDR5-4800 Memory Kit. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

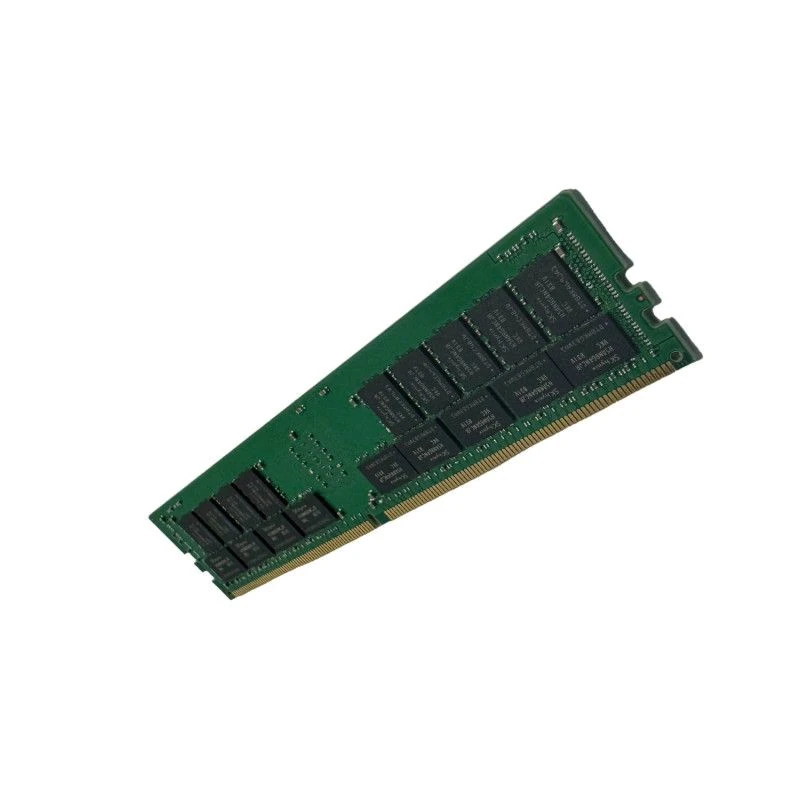

P43333-0A1 is the assembly number HPE prints on the label of its 64GB dual rank x4 DDR5-4800 registered Smart Memory module. If you have pulled a DIMM from a ProLiant Gen11 server and this is the number you can read on the sticker, this listing covers the same physical module that HPE sells under option kit P43331-B21 and supplies as spare part P48502-001.
The module was built for Gen11 servers running 4th Generation Intel Xeon Scalable processors, the Sapphire Rapids family. It is a 288-pin RDIMM with EC8 error correction, rated at 4800 MT/s with CAS 40-39-39 timings and a 1.1V operating voltage.
We list the P43333-0A1 in New and Refurbished condition, subject to stock. Pick the option you want on the product page to see the current price and the condition and warranty details that apply to it.
HPE tracks one module under several numbers, which often causes confusion when replacing failed memory. The -B21 number (P43331-B21) is the retail option kit you would order when upgrading a server. The -001 number (P48502-001) is the spare part used by HPE service for warranty swaps, and HPE PartSurfer describes it as “SPS-DIMM,64GB PC5-4800B-R,4Gx4”. The -0A1 number is the assembly or manufacturing reference, and it is usually the one printed on the module itself.
All three point to the same 64GB 2Rx4 DDR5-4800 RDIMM, so any of them can be used to identify a replacement. When you match a module by its label, P43333-0A1 is normally the quickest check.
This is where Gen11 memory needs care. HPE QuickSpecs state that DDR5-4800 kits are supported with 4th Generation Intel Xeon Scalable processors, while servers fitted with 5th Generation (Emerald Rapids) processors take PC5-5600 memory instead. If your Gen11 server was built with, or later upgraded to, 5th Gen processors, look at the DDR5-5600 range such as the HPE P64707-B21 64GB DDR5-5600 module rather than this one.
Speed also depends on how many DIMMs share a channel. HPE rates its 4800 MT/s kits at 4800 MT/s with one DIMM per channel and 4400 MT/s with two DIMMs per channel. Some Gold, Silver and Bronze processors cap memory lower than that, and the server always runs at the lowest speed set by the processor or the installed DIMMs.
Intel Gen11 ProLiant servers such as the DL380 Gen11 use eight memory channels per processor with up to two DIMMs per channel. HPE recommends installing memory in even quantities and following the population guidelines for your server. The QuickSpecs also say x4 and x8 modules must not be mixed, and that 3DS and non-3DS memory must not be mixed. In practice that means pairing this x4 module with other 64GB 2Rx4 DIMMs rather than with the 32GB 2Rx8 kits such as the HPE P43330-0A1 32GB DDR5-4800 module.
The New option suits fresh builds and upgrades where you want every DIMM in a bank to come from the same unused stock. Details of the condition and warranty are shown when you select New.
The Refurbished option is a cost-saving choice for replacing a failed DIMM or extending an existing bank of identical modules. The condition and warranty that apply are shown when you select Refurbished.
| Specification | Details |
|---|---|
| Assembly part number | P43333-0A1 |
| Option kit number | P43331-B21 |
| Spare part number | P48502-001 |
| Manufacturer | Hewlett Packard Enterprise (HPE) |
| Capacity | 64GB (1 x 64GB) |
| Memory type | DDR5 SDRAM, registered (RDIMM) |
| Rank and organisation | Dual rank, x4 (2Rx4) |
| Data rate | DDR5-4800 (PC5-38400) |
| CAS latency | CL40 (40-39-39) |
| Error correction | EC8 ECC |
| Voltage | 1.1V |
| Form factor | 288-pin DIMM |
| Processor support | 4th Generation Intel Xeon Scalable (Gen11) |
Reseller compatibility lists based on HPE data show this module in the following systems when fitted with 4th Gen Intel Xeon Scalable processors:
AMD based Gen11 models such as the DL325, DL345, DL365 and DL385 use HPE’s separate AMD memory kits, for example the P50312-B21 64GB DDR5-4800 kit.
UK delivery is available, and the options for your address are shown at checkout. If you are not sure this is the right module, send us your server model, serial number and a photo or the text of the existing DIMM label, and we will help you match it before you order.
Yes. P43333-0A1 is the assembly number printed on the module, P43331-B21 is the option kit number and P48502-001 is the spare part number. All three refer to the same 64GB 2Rx4 DDR5-4800 registered DIMM.
HPE QuickSpecs list DDR5-4800 kits for 4th Generation Intel Xeon Scalable processors, while 5th Generation models take PC5-5600 memory. For a 5th Gen system, choose a DDR5-5600 kit instead.
HPE does not allow mixing x4 and x8 memory. The common 32GB DDR5-4800 kit is 2Rx8, so it should not share a server with this 2Rx4 module. Pair it with other 64GB 2Rx4 DIMMs.
Select New or Refurbished on the product page. The condition and warranty details for that option are shown once it is selected.
Yes, UK delivery is available. The delivery options for your address appear at checkout.
