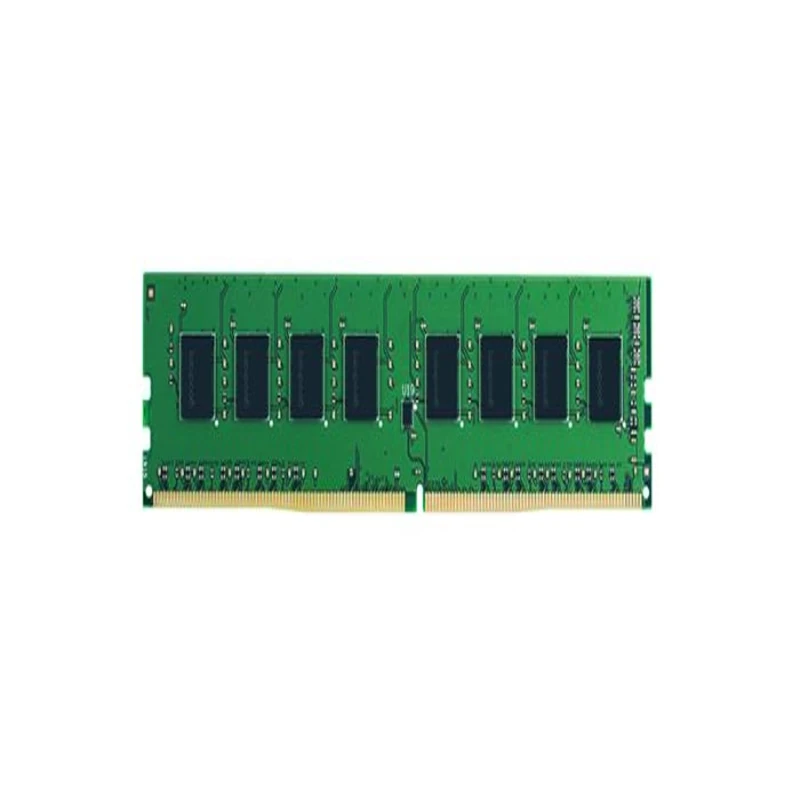

HPE P39381-001 32GB DDR4-3200 Memory Kit

HPE P39381-001 32GB PC4-3200AA-R Spare Memory Module

P39381-001 is the HPE spare part number for a 32GB registered DDR4 module. HPE service uses spare numbers like this when a failed DIMM is swapped under a support contract, which is why you will often see it quoted on service tickets, in the HPE parts lookup or on replacement packaging.

Its spare description, SPS-DIMM 32GB PC4-3200AA-R 4Gx4, packs a lot of information into one line. It tells you the module is a 32GB registered DIMM, runs at 3200 MT/s and is built from x4 DRAM chips. The same physical module is sold as option kit P38454-B21 and carries assembly number P38520-1A1 on its label.

P39381-001 is listed here as New and Refurbished, depending on stock. Select a condition to see the price and details for it.

Key Features At A Glance

• HPE spare number used for like for like replacements
• 32GB DDR4 RDIMM with ECC error correction
• Single rank x4 build, as shown by its 1Rx4 rating
• Interchangeable with option P38454-B21 and assembly P38520-1A1
• New or Refurbished choice, subject to stock

Reading The Spare Description

Each part of SPS-DIMM 32GB PC4-3200AA-R 4Gx4 has a meaning:

• SPS marks it as an HPE spare part, not a retail option kit
• 32GB is the capacity of the single module
• PC4-3200AA is the DDR4 speed and timing grade, 3200 MT/s with CL22 timings
• R means registered, so it is an RDIMM rather than an LRDIMM or unbuffered module
• 4Gx4 describes the DRAM organisation, using x4 chips

When you compare this with the label on a failed module, check that the speed grade, the R suffix and the rank layout all match. A 32GB module that reads 2Rx4 is dual rank and is not an exact match, even though the capacity is the same.

Spare and option numbers matter more when you are buying for a fleet of servers. Procurement teams often order by the -B21 option number for new builds and by the -001 spare number for repairs, but in this case both arrive as the same module, so you can stock one part to cover both jobs.

Diagnosing A Failed DIMM Before You Replace It

HPE ProLiant servers log memory faults in the Integrated Management Log, which you can read through iLO. The log entry normally names the processor and slot of the affected DIMM, so you can find the right module without guessing. Reseat the module first if the log shows a one-off error, and replace it if errors keep returning on the same slot.

Keep the replacement in the same slot, and do not mix it with x8 modules or LRDIMMs, which HPE does not support alongside RDIMMs on the DL385 Gen10 Plus. On that platform HPE rates kits from 8GB to 128GB at 3200 MT/s with one or two DIMMs per channel, though the processor installed still sets the final speed.

New P39381-001 Modules

New modules are unused parts. The page shows the condition and the warranty that applies once New is selected.

Refurbished P39381-001 Modules

Refurbished modules have been used before and cost less than new. Selecting Refurbished shows the condition and warranty details for that option.

P39381-001 Technical Specifications

Where This Spare Fits

HPE includes the matching P38454-B21 kit in the DL385 Gen10 Plus memory options. Spares specialists list P39381-001 for:

• HPE ProLiant DL385 Gen10 Plus
• HPE ProLiant DL325 Gen10 Plus
• HPE ProLiant DL365 Gen10 Plus
• HPE DX385 Gen10 Plus

As a DDR4 part, it cannot be used in DDR5 based Gen11 servers. If your system is not on the list, ask us before ordering.

Related HPE Parts

• P38454-B21 option kit for the same 32GB module
• P38520-1A1 assembly number version
• HPE P11443-091 16GB DDR4-3200 memory kit
• HPE P28217-B21 64GB DDR4 memory kit
• HPE P19368-B21 DL385 Gen10 heatsink
• Server rail kits
• More HPE spares

How To Confirm You Need P39381-001

• Your HPE service ticket or parts lookup quotes P39381-001
• The failed module label shows P38520-1A1 or 32GB 1Rx4 PC4-3200AA-R
• The server is a DDR4 Gen10 Plus model
• The iLO log points to a specific slot you can match

Buying P39381-001 In The UK

We supply HPE spare memory to UK customers, and delivery options are shown at checkout. To make sure you get the right spare first time, contact us with your server model, serial number and the label text from the module you are replacing.

Frequently Asked Questions

Is P39381-001 the same as P38454-B21?

Yes, they are the same 32GB single rank DDR4-3200 registered module. P39381-001 is the spare number used for replacements and P38454-B21 is the option kit number used for upgrades.

How do I find which DIMM has failed in my ProLiant?

Check the Integrated Management Log in iLO. It records memory errors and usually names the processor and slot, so you know which module to replace.

Will P39381-001 work in a Gen11 ProLiant?

No. Gen11 servers use DDR5 memory, and this is a DDR4 module for Gen10 Plus systems such as the DL385 Gen10 Plus.

What condition and warranty do I get?

Select New or Refurbished on this page and the condition and warranty for that option are shown.

Can I order this spare for delivery in the UK?

Yes. We deliver across the UK and list the delivery options at checkout.
