| Part Number: | P19376-001 |
|---|---|
| Manufacturer: | HPE |
| Servers Spare Parts: | Server Motherboard |
| Model: | DL380 Gen10 |
| Description: | Buy HPE P19376-001 DL380 Gen10 System Board. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

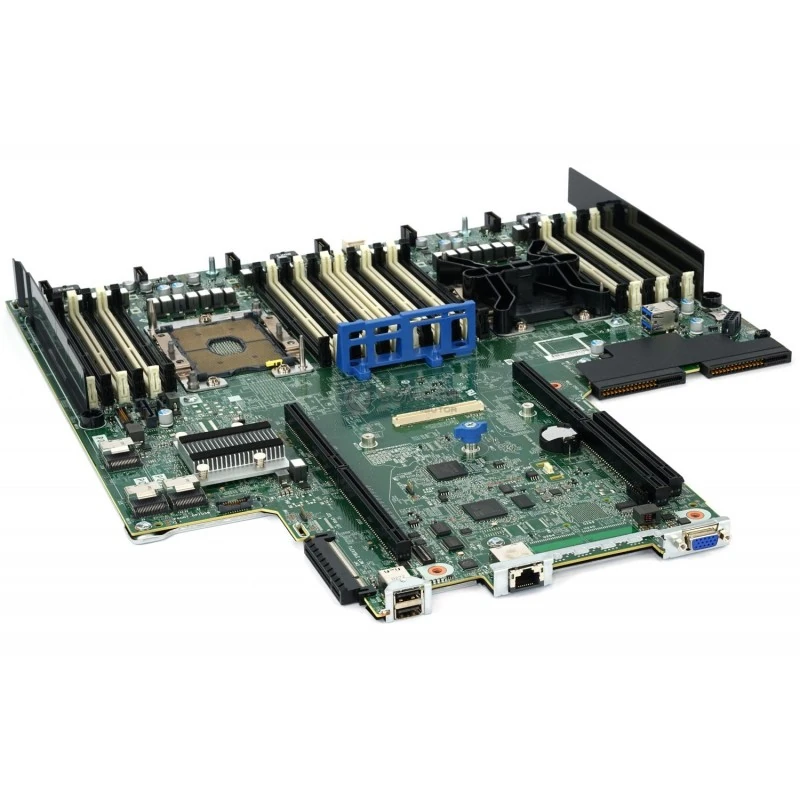

This listing covers the HPE P19376-001, a system board for the ProLiant DL380 Gen10 that suppliers describe as the Network Choice, or NC, version. Unlike the standard DL380 Gen10 board, it has no embedded four port 1GbE controller, so all networking comes from a FlexibleLOM or a stand up network card.
P19376-001 is normally listed side by side with P19928-001, and specialist suppliers sell the two numbers as the same NC board. Several UK and European spares suppliers list the board under both numbers in a single listing, and one describes it simply as the DL380 Gen10 system I/O board without the 331i NIC. Whichever number is on your label, the important question is whether your server is an NC model.
We offer P19376-001 in New and Refurbished condition, subject to stock. Select an option on the product page to see its condition and warranty.
HPE built the DL380 Gen10 in two networking styles. Standard models have four 1GbE RJ45 ports built into the system board. NC models leave these out and ship with a preselected FlexibleLOM instead, so customers can choose 1GbE, 10GbE or faster networking from the start.
That difference is physical, not a setting. A standard board such as P11782-001 or 875073-001 has the extra network controller and its ports, while the P19376-001 does not. Fitting the wrong type can leave you with a rear panel that does not line up, or with network ports your build was never meant to have. If your existing server has no built in RJ45 ports apart from the iLO port, P19376-001 or P19928-001 is the board family to look at.
Suppliers list P19376-001 with support for both first and second generation Intel Xeon Scalable processors. The DL380 Gen10 platform provides 24 DIMM slots, twelve per processor across six channels, with memory speeds of up to 2933 MT/s when second generation Gold 6200 or Platinum 8200 CPUs and matching DIMMs are installed. HPE limits Intel Optane persistent memory to selected second generation processors.
Keep the system ROM and iLO firmware current, particularly if you are moving to newer processors at the same time as the board swap.
A new board suits users who want an unused part for a planned repair. The warranty and condition text appear with this option.
A refurbished board offers a lower cost way to repair an NC server that is outside its original support term. Condition and warranty details are shown when you pick it.
| Specification | Details |
|---|---|
| Part number | P19376-001 |
| Paired number | P19928-001 |
| Board type | DL380 Gen10 Network Choice (no embedded NIC) |
| Server | HPE ProLiant DL380 Gen10 NC, SFF and LFF |
| CPU sockets | 2 x FCLGA3647 |
| Processor support | 1st and 2nd Gen Intel Xeon Scalable |
| DIMM slots | 24 x DDR4 (12 per CPU) |
| Maximum memory speed | 2933 MT/s (processor dependent) |
| Networking | None onboard, FlexibleLOM or PCIe adapter |
| Management | HPE iLO 5 |
| Condition options | New, Refurbished |
UK delivery is available, and the choices are listed at checkout. If you are not sure whether your server is a standard or NC model, contact us with the model, serial number and board label details so we can check before you buy.
Suppliers sell the two numbers together as the DL380 Gen10 NC system board, and either may appear on the label. Send us your label details if you want us to double check.
No. It is the Network Choice version, so networking comes from a FlexibleLOM or a PCIe network card. Only the iLO management port is on the board.
It is meant for NC servers. A standard DL380 Gen10 with four built in 1GbE ports should use a standard board such as P11782-001.
Suppliers list first and second generation Intel Xeon Scalable processors. Keep the system ROM up to date so the processors you fit are recognised.
The condition and warranty for New and Refurbished are shown when you select each option, and UK delivery choices are listed at checkout.
