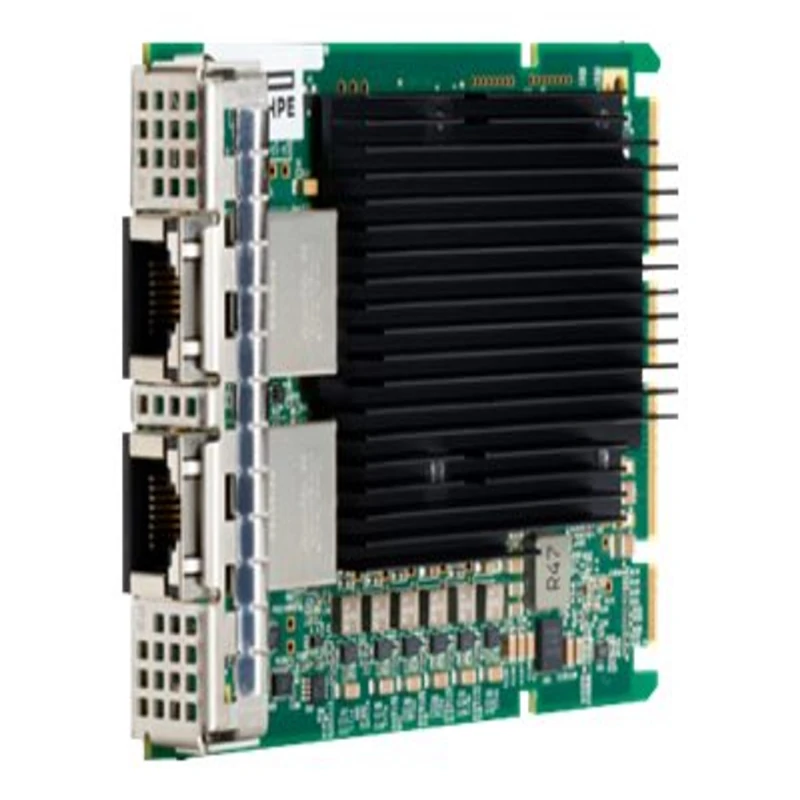

HPE P10097-B21 BCM57416 Network Adapter

HPE P10097-B21 Broadcom BCM57416 Ethernet 10Gb 2-Port BASE-T OCP3 Adapter

The HPE P10097-B21 Broadcom BCM57416 Ethernet 10Gb 2-Port BASE-T OCP3 Adapter is a dual-port network adapter designed for compatible HPE ProLiant servers. It provides high-speed copper Ethernet connectivity through two RJ-45 ports, supporting 1GbE and 10GbE network connections.

Built around the Broadcom BCM57416 controller, this adapter uses the OCP 3.0 form factor and a PCI Express 3.0 x8 host interface. It is suitable for organisations maintaining or upgrading supported enterprise servers that require 10GbE connectivity over twisted-pair network cabling.

Unlike conventional stand-up PCIe cards, P10097-B21 requires a compatible OCP 3.0 network adapter slot. Its BASE-T interfaces also distinguish it from SFP+ and SFP28 adapters that require different connectivity components.

HPE P10097-B21 Technical Specifications

Bandwidth note: Each port supports up to 10Gbps in one direction. The combined theoretical one-way port capacity is 20Gbps when both ports operate at 10GbE. Actual performance depends on the server and network configuration.

Key Features of the Broadcom BCM57416 OCP3 Adapter

• Dual 10GbE ports: Provides two independent Ethernet connections for supported enterprise server environments.
• RJ-45 copper connectivity: Uses standard BASE-T Ethernet interfaces rather than optical transceiver slots.
• 1GbE and 10GbE support: Offers flexibility when connecting to compatible network switches.
• OCP 3.0 architecture: Designed for servers equipped with a supported OCP network adapter slot.
• PCIe 3.0 x8: Provides the host interface required for dual-port 10GbE networking.
• Network boot capabilities: Supports documented PXE and UEFI iSCSI boot functions in qualified configurations.

Compatible HPE ProLiant Servers

HPE lists P10097-B21 among its Ethernet adapter options for selected ProLiant Gen10 Plus and Gen11 server platforms.

However, compatibility depends on the exact server model, OCP slot configuration, system firmware and supported operating system.

Before ordering, check:

• The server model and generation.
• The presence of a compatible OCP 3.0 adapter slot.
• The relevant HPE server QuickSpecs and option support list.
• The installed BIOS, adapter firmware and network drivers.
• Switch port speeds and available copper network cabling.

A standard PCIe expansion slot is not a substitute for an OCP 3.0 slot. Buyers should confirm the physical adapter format before selecting P10097-B21.

10GbE BASE-T Connectivity and Cabling

The HPE P10097-B21 uses two RJ-45 interfaces for copper Ethernet connections. This makes it relevant for businesses using compatible 10GBASE-T switches and structured copper cabling.

For 10GbE operation, Cat6A cabling is generally recommended for installations requiring channel lengths of up to 100 metres under the applicable cabling standards. Suitable Cat6 cabling may also support 10GbE over shorter distances, depending on installation conditions.

The adapter can also negotiate supported 1GbE connections, allowing it to operate with suitable Gigabit Ethernet network equipment.

Important: The P10097-B21 does not have SFP+ or SFP28 ports. Fibre-optic transceivers and DAC cables intended for those interfaces cannot be connected directly.

Applications for Enterprise Networking

Dual-port 10GbE connectivity can be useful for servers running virtual machines, business applications and Ethernet-based storage traffic.

Depending on the server operating system and network architecture, administrators may configure the two ports for separate network segments or supported network teaming arrangements.

The adapter’s documented PXE boot capabilities may also be relevant for compatible network-based deployment environments. UEFI iSCSI remote boot is available where supported by the complete system configuration.

Redundancy and failover require appropriate network and software configuration; they are not guaranteed simply by installing a dual-port adapter.

P10097-B21 vs P26253-B21: OCP3 or Stand-Up Adapter?

HPE offers two Broadcom BCM57416 dual-port 10GbE BASE-T adapters with different physical formats.

• HPE P10097-B21: Broadcom BCM57416 10Gb 2-Port BASE-T OCP3 Adapter.
• HPE P26253-B21: Broadcom BCM57416 10Gb 2-Port BASE-T stand-up PCIe Adapter.

Both products use the Broadcom BCM57416 controller and support dual-port 10GbE copper networking, but they are designed for different installation slots.

Choose P10097-B21 when the server’s supported configuration specifies an OCP 3.0 adapter. Do not substitute the stand-up version without checking the server’s expansion options.

Installation and Replacement Guidance

Before installing the HPE P10097-B21, review the maintenance documentation for the relevant server and confirm that the OCP slot supports this adapter.

Record the existing network settings, including IP addresses, VLAN assignments and any network teaming configuration.

Follow the server manufacturer’s instructions for removing or installing OCP network adapters. After installation, confirm that the Broadcom BCM57416 controller is detected and that the appropriate firmware and drivers are installed.

Connect the adapter to qualified network switch ports and verify the negotiated speed and link status of both RJ-45 connections.

New and Refurbished HPE P10097-B21

New HPE P10097-B21

A New or unused HPE P10097-B21 adapter may be suitable for server upgrades, planned infrastructure expansion and replacement inventory. Confirm packaging, included components, stock availability and warranty terms before ordering.

Refurbished HPE P10097-B21

A Refurbished Broadcom BCM57416 OCP3 adapter may provide a cost-effective alternative for maintaining compatible ProLiant servers. Buyers should request confirmation of physical inspection, adapter detection and functional testing of both Ethernet ports.

For either condition, confirm the supplied part number, warranty coverage and UK delivery arrangements with the supplier.

Related HPE Networking Products

Explore other networking adapters and enterprise infrastructure components available from Euroland IT Store:

• HPE 817738-B21 Ethernet 10Gb 2-Port 562T Adapter – A stand-up dual-port RJ-45 adapter for supported server configurations.
• HPE 840137-001 Ethernet 562T Adapter Spare – A replacement component for the 562T adapter family.
• HPE P08443-B21 Intel E810 10/25Gb SFP28 Adapter – A dual-port optical-capable Ethernet adapter with a different interface and form factor.
• HPE 784304-001 Dual-Port 10GbE SFP+ Adapter – A separate SFP+ networking component.
• HPE JH406A 5950 8-Port QSFP28 Module – A high-speed switch expansion module for compatible FlexFabric switches.

These related products are included for navigation and are not guaranteed compatible accessories or direct replacements for HPE P10097-B21.

Buy HPE P10097-B21 Broadcom BCM57416 Adapter in the UK

Euroland IT Store helps UK businesses source HPE network adapters, enterprise server hardware and replacement IT components.

Contact our team to enquire about HPE P10097-B21 availability, New or Refurbished condition, warranty terms, pricing and UK delivery.

For compatibility assistance, provide your HPE server model, existing adapter part number and required network connection speeds.

Request a Quote for HPE P10097-B21

Frequently Asked Questions

1. What is HPE P10097-B21?

HPE P10097-B21 is a Broadcom BCM57416 Ethernet 10Gb 2-Port BASE-T OCP3 Adapter designed for compatible HPE servers.

2. Does HPE P10097-B21 have RJ-45 ports?

Yes. It has two RJ-45 BASE-T Ethernet ports supporting 1GbE and 10GbE connections.

3. Is HPE P10097-B21 a standard PCIe network card?

No. It uses the OCP 3.0 form factor and requires a compatible OCP network adapter slot. Its host interface is PCIe 3.0 x8.

4. What is the difference between P10097-B21 and P26253-B21?

Both use the Broadcom BCM57416 controller, but P10097-B21 is the OCP 3.0 version while P26253-B21 is a stand-up PCIe adapter.

5. Is HPE P10097-B21 available in New and Refurbished condition?

New and Refurbished options may be available through Euroland IT Store. Contact the team to confirm stock, testing, warranty and UK delivery.
