HPE MM1000JEFRB 1TB 7.2K 12G 2.5″ SAS HDD

HPE MM1000JEFRB 1TB 7.2K 12G SAS 2.5 Inch Midline Drive

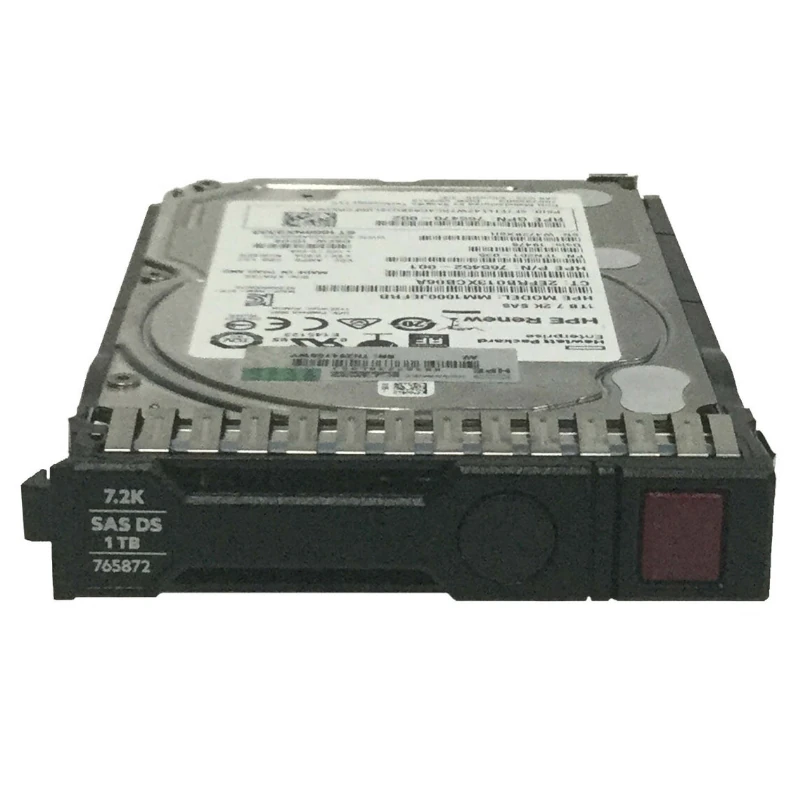

MM1000JEFRB is the HPE drive model number for a 1TB Midline SAS hard drive. It is a 2.5 inch small form factor disk with a 12Gb/s SAS interface and a spindle speed of 7,200 rpm. When HPE ships it as an option kit (765464-B21) or a spare (765872-001), it comes in the SmartDrive Carrier used by ProLiant Gen8, Gen9 and Gen10 servers.

The model number is the one that appears in HPE management tools and controller reports, because it is coded into the drive firmware. That makes it a handy reference when Smart Storage Administrator or iLO flags a failed disk and you need to find an identical replacement quickly.

At Euroland IT Store the MM1000JEFRB is offered New and Refurbished, subject to current stock.

HPE MM1000JEFRB Technical Specifications

What Is The HPE MM1000JEFRB?

HPE drives carry a model number as well as option and spare numbers. The model is what you read inside the server, because the drive reports it to the controller. The option and spare numbers are what you read on boxes, paperwork and carrier labels.

If your controller log or iLO screen names MM1000JEFRB as failed, any of the matching numbers will give you the same drive. That includes option kit 765464-B21, spare 765872-001 and assembly numbers 765452-001 or 765470-001. Ordering by one of these avoids picking up a 1TB SATA drive or an older 6G model by accident.

Finding The Model Number Without Pulling The Drive

You do not always need to remove a disk to identify it. HPE Smart Storage Administrator lists each physical drive with its model, serial number, firmware and bay. iLO on Gen9 and Gen10 servers shows the same details under storage information. Writing the model down before you order means you can match the replacement precisely and plan the swap for a quiet period.

Midline Drives And Workload Planning

Midline SAS drives are rated for lighter duty than HPE Enterprise 10K and 15K drives. They are ideal for capacity tiers, nearline backups and file storage where data is written once and read many times. For a busy SQL server or a heavily loaded hypervisor, consider pairing Midline capacity with faster drives or SSDs for the hot data.

New HPE MM1000JEFRB

A New drive is right for buyers who want an untouched unit, perhaps for a newly deployed server or as a guaranteed fresh spare. The product page shows the condition and warranty details for New stock.

Refurbished HPE MM1000JEFRB

Refurbished is the budget-friendly route for replacing a failed disk in a server you plan to keep running for a few more years. Condition and warranty for Refurbished stock are set out on the product page.

Compatibility

• HPE ProLiant DL380 Gen10 and DL380 Gen9
• HPE ProLiant DL360 Gen10 and DL360 Gen9
• HPE ProLiant DL20 Gen10 and DL120 Gen9
• HPE ProLiant ML350 Gen10 and ML150 Gen9
• HPE ProLiant DL380p Gen8 and ML350p Gen8

These come from PartSurfer-based lists and are a guide only. Check the server model, the drive cage type and the label of the drive you are replacing.

Related Part Numbers

• HPE 832514-B21 (Refurbished): a 12G SAS 7.2K 2.5 inch drive listing
• HPE 832984-001 (Refurbished): a 12G SAS 7.2K SFF spare listing
• HPE 652749-B21 (Refurbished): a 1TB 6G SAS 7.2K SFF drive
• HPE 653954-001 (Refurbished): a 1TB 6G SAS 7.2K SFF spare
• HPE MM1000GBKAL: a 1TB 6G SATA 7.2K 2.5 inch drive model
• HPE 826690-B21 DL38x Gen10 8SFF drive bay kit for adding SFF bays

The option kit for MM1000JEFRB is 765464-B21 and its spare number is 765872-001; both are listed in the specifications table above.

Is This The Right Drive? A Short Checklist

1. Your controller or iLO reports the failed disk as MM1000JEFRB.
2. The drive is 1TB SAS, not SATA.
3. The bay is an SFF SmartDrive bay in a Gen8, Gen9 or Gen10 server.
4. You have noted the firmware level of the remaining drives.

Adding Capacity With Extra Drives

If you are growing storage rather than replacing a failure, Smart Array lets you add drives to an existing array and then extend the logical drive. This can take time on large arrays, so plan it outside busy hours and take a backup first. Adding drives of the same model keeps performance even across the set.

Buying HPE MM1000JEFRB in the UK

Euroland IT Store works with UK businesses, IT managers, resellers and repair centres. The product page gives the latest condition, warranty, stock and delivery information. We offer free shipping to the UK mainland on orders over £100 + VAT. For help matching a drive, send us your server model plus the numbers on your existing drive, or call 0203 209 6002.

MM1000JEFRB FAQs

Which servers support the MM1000JEFRB drive?

It is listed for HPE ProLiant Gen8, Gen9 and Gen10 servers with SFF SmartDrive bays, including the DL360, DL380 and ML350 families, though you should confirm your exact configuration.

What option and spare numbers match MM1000JEFRB?

The matching option kit is 765464-B21 and the matching spare part is 765872-001, both for the 1TB SAS 12G 7.2K SFF Midline drive.

Should I buy New or Refurbished?

Choose New for an unused drive or strict parts policies, or Refurbished for a lower-cost replacement in an existing server.

Is there a warranty on this drive?

Yes, a warranty applies, and its terms for each condition are shown on the product page.

Do you offer free UK delivery?

Orders over £100 + VAT qualify for free delivery to UK mainland addresses.
