HPE 868843-001 PC4-21300 DDR4-2666MHz Memory

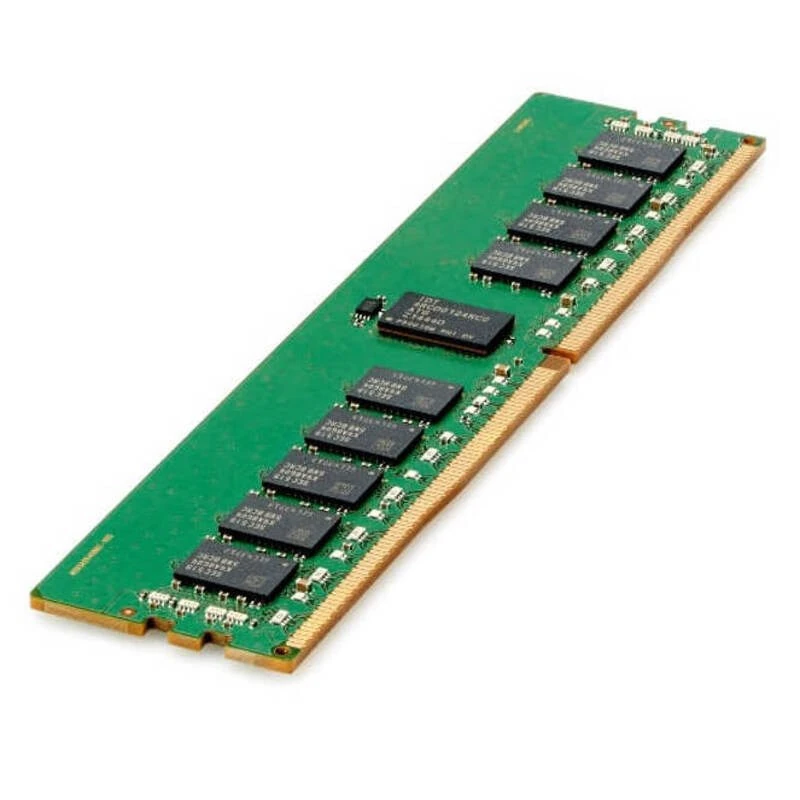

HPE 868843-001 32GB DDR4-2666 Registered Memory Spare

Spare number 868843-001 identifies a 32GB dual rank PC4-2666V registered DIMM supplied by HPE for service replacement. It pairs with option kit 838083-B21, the 32GB DDR4-2666 kit listed for AMD EPYC based ProLiant Gen10 servers, and the module label carries the assembly number 840758-191.

When an HPE support case or a parts breakdown names 868843-001, this is the replacement it refers to. Ordering by the spare number is the most reliable way to get exactly the module that was specified for the server.

Euroland IT Store has the 868843-001 in New and Refurbished condition, subject to stock levels.

Key Features At A Glance

• HPE service spare for 32GB kit 838083-B21
• Registered DDR4 with ECC at a rated 2666 MT/s
• Suited to the ProLiant DL325 Gen10 and DL385 Gen10
• Ideal for like-for-like replacement of a failed DIMM
• Low voltage 1.2V DDR4 operation
• New or Refurbished, stock permitting

Spare 868843-001 vs Spare 850881-001

HPE released two 32GB DDR4-2666 registered kits for Gen10 that are easy to mix up:

• 838083-B21 / 868843-001 / 840758-191: listed for AMD EPYC Gen10 servers. This part.
• 815100-B21 / 850881-001 / 840758-091: listed for Intel Xeon Scalable Gen10 servers such as the DL360 and DL380 Gen10.

Capacity, rank and speed are the same on paper, but each kit appears on a different set of server QuickSpecs. For a support replacement, match the spare number already recorded for your server rather than choosing on specification alone.

Memory Layout on DL325 and DL385 Gen10

First generation AMD EPYC processors have eight memory channels each, and these servers can take two DIMMs per channel. That gives the single socket DL325 Gen10 sixteen slots and the dual socket DL385 Gen10 thirty-two. Spreading modules evenly over all eight channels of each processor gives the best bandwidth, and every DIMM in the server should be the same type.

HPE QuickSpecs for the DL385 Gen10 also state that registered and load reduced DIMMs cannot be mixed, and that x4 and x8 based modules must not be mixed either. The 868843-001 is an x4 module, so do not combine it with x8 parts such as the 16GB 838089-B21 in the same server. Later DL385 Gen10 configurations with second generation EPYC processors use newer DDR4-2933 kits, so check which processors are fitted before adding memory.

The rated 2666 MT/s is a maximum. The processor model and the number of DIMMs in each channel decide the final speed.

Replacing a Failed Module

Use the server’s management log to find which slot reported the fault, then power the server down fully before opening it. Fit the new 868843-001 in the same slot, close the server and confirm after boot that the full memory size is reported and the error has cleared.

New 868843-001

An unused module is supplied under the New option. Its pricing and warranty appear when it is selected.

Refurbished 868843-001

A Refurbished module has seen previous service and is priced lower, making it a practical spare to keep on the shelf. The condition and warranty are listed once you select it.

868843-001 Technical Specifications

Compatible Servers

• HPE ProLiant DL325 Gen10
• HPE ProLiant DL385 Gen10

Our earlier listing also mentioned the Intel based DL360 Gen10 and DL380 Gen10. HPE normally lists the 815100-B21 kit for those models, so contact us before ordering 868843-001 for one of them. Other DL385 Gen10 parts we carry include the HPE P00249-001 DL385 Gen10 2U heatsink and the HPE P00654-001 EPYC 7351 processor.

Related Memory

• HPE 840758-191 32GB PC4-2666V module, the assembly number of this spare
• HPE 838089-B21 16GB DDR4-2666 kit, an x8 module for the same servers, used instead of this part rather than alongside it
• Browse server memory

Matching Checklist

• Compare the faulty module’s label with 868843-001, 838083-B21 or 840758-191.
• Check the marking reads 32GB 2Rx4 PC4-2666V-R.
• Confirm the server is a DL325 Gen10 or DL385 Gen10.
• If the label ends in -091 rather than -191, you need the Intel platform spare instead.

Buying HPE 868843-001 in the UK

Euroland IT Store supplies HPE spares to IT teams, maintenance contractors and resellers across the UK. UK delivery is available, and options and costs are confirmed at checkout.

Share your server model and serial number, and the label text from the module being replaced, and we will make sure 868843-001 is the right match.

Frequently Asked Questions

Which option kit matches spare 868843-001?

The matching option kit is 838083-B21. The module itself is labelled with assembly number 840758-191.

Is 868843-001 interchangeable with 850881-001?

They share capacity, rank and speed, but 850881-001 is the spare for the 815100-B21 kit listed for Intel Gen10 servers, while 868843-001 belongs to the AMD platform kit. Use the spare listed for your server.

How many DIMM slots does a DL385 Gen10 have for this memory?

The DL385 Gen10 has thirty-two slots, sixteen per processor across eight channels. The single socket DL325 Gen10 has sixteen.

Where can I see the warranty for each condition?

Select New or Refurbished on this page and the warranty and condition details for that option will be shown before you buy.

Is delivery available to UK addresses?

Yes. We deliver across the UK, and the delivery options and costs are shown at checkout.
