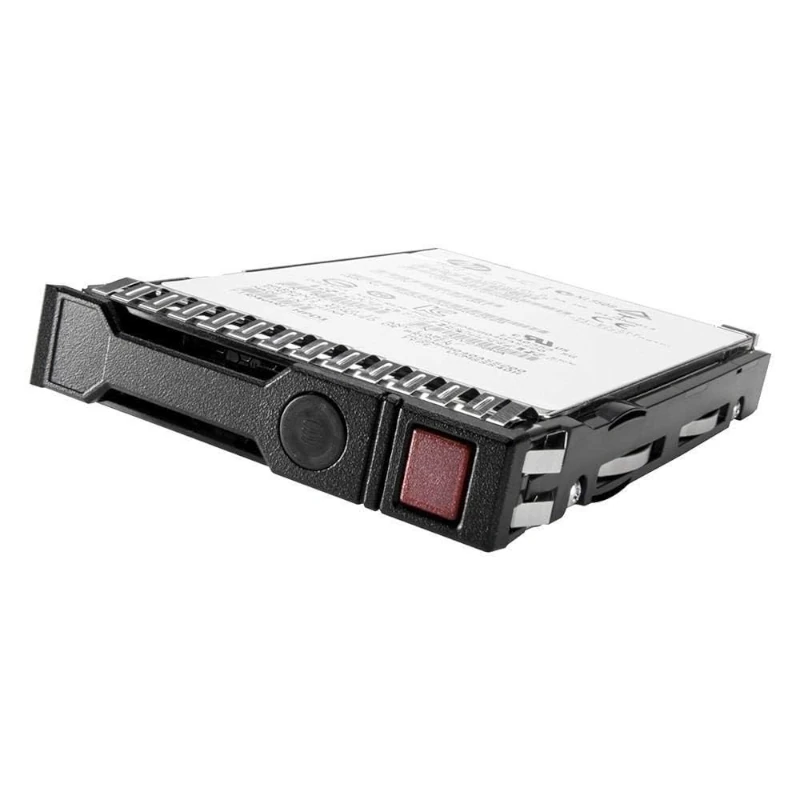

HPE 868230-001 10TB 12G 7.2K Server Hard Drive

HPE 868230-001 MSA 10TB 12G SAS 7.2K LFF Midline Hard Drive

HPE 868230-001 is the spare part number for the MSA 10TB 12G SAS 7.2K LFF Midline 512e drive, sold new as option kit P9M82A. It is a 3.5 inch, 7,200 rpm, dual port SAS disk that ships in the MSA LFF carrier for HPE Modular Smart Array enclosures.

It suits customers who keep backups, archives, video or file shares on an MSA and need bulk capacity at a low cost per terabyte. Typical buyers are replacing a failed Midline disk, or adding members to an LFF disk group on an MSA 2050 or an MSA 2040 shelf.

The 868230-001 is available from Euroland IT Store as a New or Refurbished part, subject to current stock.

HPE 868230-001 Technical Specifications

What Is The HPE 868230-001?

The HPE MSA 2050 QuickSpecs list P9M82A as the MSA 10TB 12G SAS 7.2K rpm LFF Midline 512e drive. 868230-001 is the spare part that HPE service uses for that option. Resellers also list 868151-002 as the assembly number and drive models such as HUH721010AL5204, ST10000NM002G and ST10000NM0528 inside the same HPE part.

Why does the spare number help? It is printed on the drive label and is what HPE support quotes when a disk fails, so matching it removes guesswork. It also separates this MSA drive from the ProLiant 10TB drives, which use SmartCarrier or low profile trays and different HPE numbers.

Midline Duty: Where A 10TB MSA Drive Fits

HPE classes 7.2K drives as Midline. They give high capacity and good sequential throughput, but HPE notes in the MSA QuickSpecs that Midline drives should not be used in a heavy or intense I/O environment. In practice that means they are a sound choice for backup targets, archive tiers and large file shares, while busy databases are better placed on 10K or 15K Enterprise drives or SSDs.

The MSA lets you mix SSD, Enterprise SAS and Midline SAS drives in the same enclosure, so many sites keep a small fast tier and a large Midline tier side by side. Plan each disk group with drives of one type.

Gen5 Versus Gen6 MSA

This drive belongs to the MSA generation that includes the MSA 1050, 2050 and 2052. HPE QuickSpecs for the newer MSA 2060 state plainly that prior-generation MSA hard drives are not compatible with MSA Gen6 systems, so do not order the 868230-001 for an MSA 1060, 2060 or 2062.

New HPE 868230-001

New stock is the natural choice for a fresh disk group, or for a business that wants every drive in an archive tier to start life at the same point. Check the product page for warranty details on new units.

Refurbished HPE 868230-001

Refurbished stock offers a cost-effective spare for MSA 2040 or 2050 systems already in service, and it is handy to keep one on the shelf for quick swaps. The condition and warranty that apply are shown on the product page.

Compatibility

• HPE MSA 2050 and MSA 2052 (P9M82A is listed in the HPE MSA 2050 QuickSpecs)
• HPE MSA 1050 LFF configurations, per reseller listings
• HPE MSA 1040, MSA 2040 and MSA 2042 LFF enclosures, per reseller listings
• Not compatible with MSA Gen6 (1060, 2060, 2062)

This is an MSA array drive, not a ProLiant server drive. Check the label on your current disk and your exact enclosure model before you order.

Associated Part Numbers

• HPE P9M82A: the option kit for this MSA 10TB drive, as listed in HPE QuickSpecs.
• HPE E7W02A MSA 1040 1G controller: a controller for MSA 1040 systems, which resellers list for this drive.
• HPE 868151-002: listed by resellers as the assembly number for the same drive.
• HPE 876127-001 MSA 2050 SAN controller: the controller module for MSA 2050 SAN arrays.
• HPE 813866-001 MSA 8TB 12G 7.2K: a smaller LFF Midline MSA drive in our catalogue.
• HPE 876131-001 MSA 2050 LFF storage and the HPE K2R82A MSA 2040 LFF chassis, which house 3.5 inch MSA drives.

Is This The Right Drive? A Quick Check

• Your array is an MSA 1040, 1050, 2040, 2042, 2050 or 2052 with LFF (12 bay) enclosures.
• The failed disk label shows 868230-001, P9M82A, 868151-002 or a matching 10TB model code.
• The disk group is made of 7.2K Midline drives of 10TB or less.
• Your array is not a Gen6 MSA.

Buying HPE 868230-001 in the UK

Our customers include UK businesses, in-house IT teams, resellers and repairers. Please check condition, warranty, stock and delivery details on the product page. UK mainland deliveries are free when the order total exceeds £100 + VAT. Email or call the team on 0203 209 6002 with your MSA model and the part numbers on your existing drive for a compatibility check.

868230-001 FAQs

Does the 868230-001 work in an MSA 2060?

No, HPE states that prior-generation MSA drives are not compatible with MSA Gen6 systems such as the 1060, 2060 and 2062; this drive is for the earlier MSA range.

What is the option kit number for 868230-001?

The matching option kit is P9M82A, the MSA 10TB 12G SAS 7.2K LFF Midline 512e drive listed in the HPE MSA 2050 QuickSpecs.

Is a New or Refurbished 868230-001 the better buy?

Pick New for a fresh disk group or strict policies, and Refurbished for a lower-cost replacement in an existing array, subject to stock.

Where can I see the warranty for this drive?

The warranty for each condition is shown on the product page; we do not apply a fixed term here, so please check it before ordering.

How is the 868230-001 delivered in the UK?

We dispatch across the UK, and orders above £100 + VAT receive free delivery to mainland addresses.
