| Part Number: | 865398-001 |
|---|---|
| Manufacturer: | HPE |
| Servers Spare Parts: | Server Power Supply |
| Model: | DL360 Gen10, DL380 Gen10, ML350 Gen10 |
| Description: | Buy HPE 865398-001 500W Power Supply Kit. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

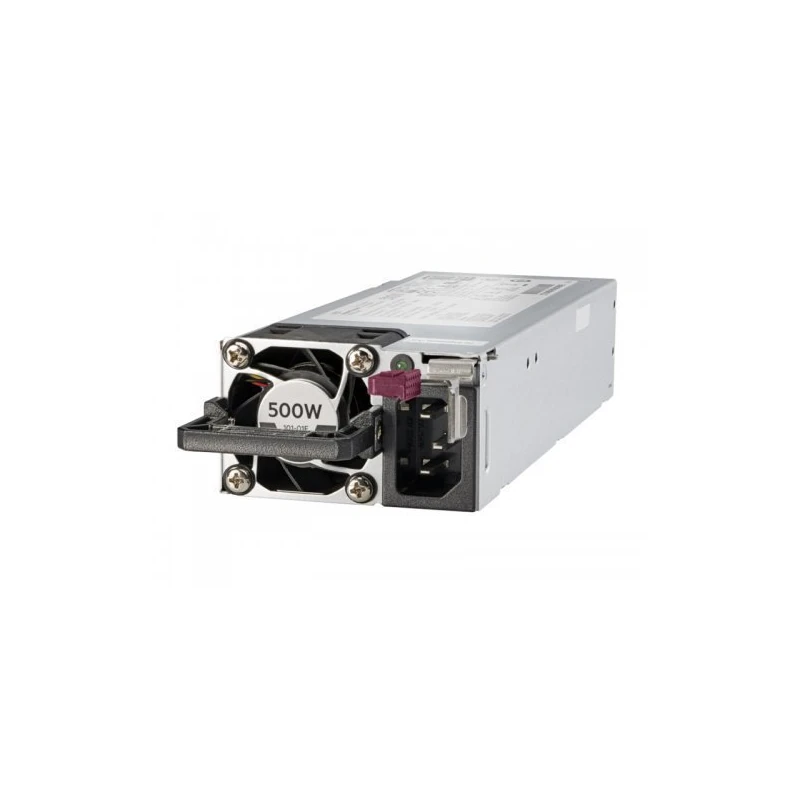

The HPE 865398-001 is the generic part number for the HPE 500W Flex Slot Platinum Hot Plug Low Halogen power supply. The same unit is ordered as option kit 865408-B21 and replaced under service as spare 866729-001. It suits ProLiant Gen10 servers that do not need a large power budget, such as single processor DL360 Gen10, DL380 Gen10 and ML350 Gen10 builds.
Choosing the right wattage matters. A 500W supply running a lightly loaded server sits closer to its efficient operating range than a much larger unit would, and it costs less to buy and keep as a spare.
865398-001 is offered New and Refurbished, subject to stock. Pick an option on the product page to see its condition and warranty.
HPE numbers its Flex Slot supplies by how they are sold and built. For this 500W unit the numbers line up as follows:
These all refer to the same 500W Flex Slot Platinum Low Halogen supply. It is a different part from the Gen9 era 500W Flex Slot Platinum kit 720478-B21, which is not low halogen.
Unlike the 1600W Flex Slot unit, this 500W supply accepts a full range input of 100 to 240V AC at 50 to 60 Hz and delivers its rated 500W at every listed voltage. That makes it useful for sites with 110V circuits as well as standard UK 230V mains.
HPE data shows efficiency improving at higher input voltage. At 230V, full load efficiency is about 93.1% with an input current of around 2.4A. At 100V, efficiency is about 89.7% and the current rises to about 5.6A. Heat output at 230V is roughly 1,833 BTU per hour.
A 500W supply is generally a good match for one processor, moderate memory and a modest number of drives. Servers with two high wattage processors, many drives or GPU cards often need 800W or more. HPE’s power advisor tool, or the power figures in iLO for a running server, will show the actual draw. In a 1+1 redundant pair, plan for the full load to be carried by one 500W unit. HPE recommends that both supplies in a server are the same type, as mixing can limit redundancy.
The New option is suited to new builds or to adding a redundant second supply. The page shows its condition and warranty.
The Refurbished option is a lower cost way to replace a failed unit. Condition and warranty for it are displayed on selection.
| Specification | Details |
|---|---|
| Generic part number | 865398-001 |
| Option kit | 865408-B21 |
| Spare number | 866729-001 |
| Assembly numbers | 865399-101, 865399-201, 865399-501 |
| Output | 500W |
| Input range | 100 to 240V AC, 50 to 60 Hz |
| Input current | 5.6A at 100V, 2.4A at 230V |
| Rated input | 563 VA at 100V |
| Efficiency | 80 PLUS Platinum, about 93.1% at 230V full load |
| Inlet | IEC C14 |
| Form factor | Flex Slot, hot plug, low halogen |
| Condition options | New, Refurbished |
Other Gen10 servers with Flex Slot bays may also list this supply. Check the QuickSpecs for your model to be sure.
UK delivery is available and options appear at checkout. For help choosing between 500W and a larger supply, send us the server model, serial number and the label details of your current power supply.
Yes. 865408-B21 is the option kit number and 865398-001 is the generic number for the same 500W Flex Slot Platinum Low Halogen supply. The service spare is 866729-001.
Yes. It accepts 100 to 240V AC and delivers 500W across that range, although efficiency is a little higher at 230V.
HPE states that low halogen Flex Slot supplies are not compatible with Gen9 servers. Gen9 models use supplies such as 720478-B21.
It often is for single processor builds with moderate memory and drives. Heavier setups may need 800W or more, so check iLO power readings or HPE’s power advisor.
Select New or Refurbished on the product page and the condition and warranty for that option are displayed. UK delivery choices are shown at checkout.
