HPE 819410-001 8GB DDR4-2400MHZ Memory

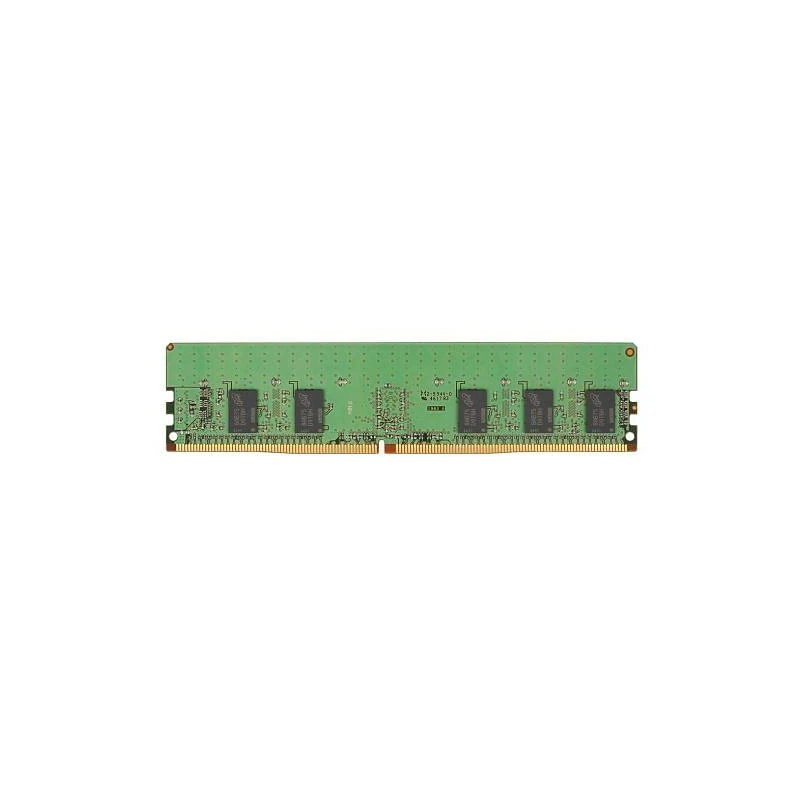

HPE 819410-001 8GB DDR4-2400 Registered Server Memory

The HPE 819410-001 is an 8GB single rank DDR4-2400 registered DIMM supplied as a genuine HPE spare part for ProLiant Gen9 servers. It is the spare part number that matches the HPE option kit 805347-B21, so it is a common choice when replacing a failed module or adding capacity to an existing Gen9 build.

With ECC protection, a registered design and HPE SmartMemory support, this module is suited to servers that run around the clock, such as file, database and virtualisation hosts.

Euroland IT Store offers the 819410-001 in New and Refurbished condition, subject to current stock.

Key Features At A Glance

• Genuine HPE spare for option kit 805347-B21
• 8GB capacity on a single DIMM
• DDR4-2400 registered memory with ECC
• HPE SmartMemory for supported ProLiant Gen9 platforms
• Low 1.2V operating voltage
• Choice of New or Refurbished, subject to stock

What Is the HPE 819410-001?

HPE uses two kinds of number for most memory. The option kit number, 805347-B21, is the part sold as a server upgrade. The spare part number, 819410-001, is the one used for service replacements. Both refer to the same 8GB single rank x8 DDR4-2400 CAS-17 registered module.

If your existing DIMM label shows either number, this module is the like-for-like replacement.

Memory Speed and Processor Support

DDR4-2400 memory arrived on the ProLiant Gen9 range alongside the Intel Xeon E5-2600 v4 processor family. In a Gen9 server fitted with v4 processors, the module can run at up to 2400 MT/s, depending on how many DIMMs are installed in each channel.

Gen9 servers using earlier Xeon E5-2600 v3 processors can still use the module, but the memory will run at the lower speed supported by those processors. The capacity is unaffected.

Single Rank Design and Upgrade Planning

Single rank 8GB modules are often used to fill every channel on a two-socket server for maximum memory bandwidth without paying for capacity you do not need. They are also a simple way to replace one failed DIMM in a server that already uses 8GB modules.

Keep each server to one memory type. Registered DIMMs such as the 819410-001 should not be mixed with load reduced (LRDIMM) modules in the same system. Follow the HPE population guidelines for your server so that channels stay balanced across both processors.

New HPE 819410-001 Memory

A New 819410-001 is unused stock. It suits buyers who need a fresh module for a maintenance contract, a spares kit or a server that must meet an internal policy on new parts.

Refurbished HPE 819410-001 Memory

A Refurbished 819410-001 has been used before and prepared for resale. It is a cost-effective option for keeping Gen9 servers in service, particularly where several modules are needed at once.

The condition and warranty for each option are shown when you select it on this page, so please check them before ordering.

HPE 819410-001 Technical Specifications

Compatible HPE ProLiant Servers

The 819410-001 is listed for these ProLiant Gen9 servers:

• HPE ProLiant DL360 Gen9, such as the HPE 755258-B21 DL360 Gen9 rack server
• HPE ProLiant DL380 Gen9
• HPE ProLiant ML350 Gen9

Other Gen9 models may also support 805347-B21. Check the HPE QuickSpecs for your server, or contact us with the model and serial number.

If you are repairing a DL380 Gen9 beyond its memory, we also stock the HPE 843307-001 DL380 Gen9 system board.

Related HPE Memory Options

Need the option kit or a larger module from the same DDR4-2400 generation? These may help:

• HPE 805347-B21 8GB DDR4-2400 option kit
• HPE 805349-B21 16GB DDR4-2400 memory
• HPE 805353-B21 32GB DDR4-2400 memory

You can also browse our full range of server memory kits or all HPE parts.

How to Confirm You Have the Right Module

• Check the label on an installed DIMM for 819410-001, 805347-B21 or the 8GB 1Rx8 PC4-2400T-R marking.
• Confirm your server is a ProLiant Gen9 model.
• Check which Xeon processor generation is fitted, as this sets the maximum memory speed.
• Make sure the server is not populated with LRDIMMs.

Buying HPE 819410-001 in the UK

Euroland IT Store supplies server memory and spare parts to IT teams, data centres, resellers and repair specialists across the UK. Delivery options and costs are shown at checkout.

Unsure about compatibility? Send us your server model, serial number and the label details from an existing DIMM, and our team will help you check before you order.

Frequently Asked Questions

Is HPE 819410-001 the same as 805347-B21?

Yes. 805347-B21 is the HPE option kit number and 819410-001 is the matching spare part number for the same 8GB single rank DDR4-2400 registered module.

Will HPE 819410-001 run at 2400 MT/s in my DL380 Gen9?

It can run at up to 2400 MT/s when the server uses Intel Xeon E5-2600 v4 processors, depending on how many DIMMs share each channel. With E5-2600 v3 processors the memory runs at the lower speed those processors support.

Can I add 819410-001 to a server that already has 16GB DIMMs?

Mixing capacities is generally possible when all modules are HPE registered DIMMs, but you should not mix RDIMMs with LRDIMMs. Follow the HPE population rules for your server to keep memory channels balanced.

What is the difference between the New and Refurbished 819410-001?

The New option is unused stock. The Refurbished option has been used before and prepared for resale. Check the condition and warranty shown for each option on the product page before you order.

Do you deliver HPE 819410-001 within the UK?

Yes. Euroland IT Store delivers across the UK, and the available delivery options and costs are shown at checkout.
