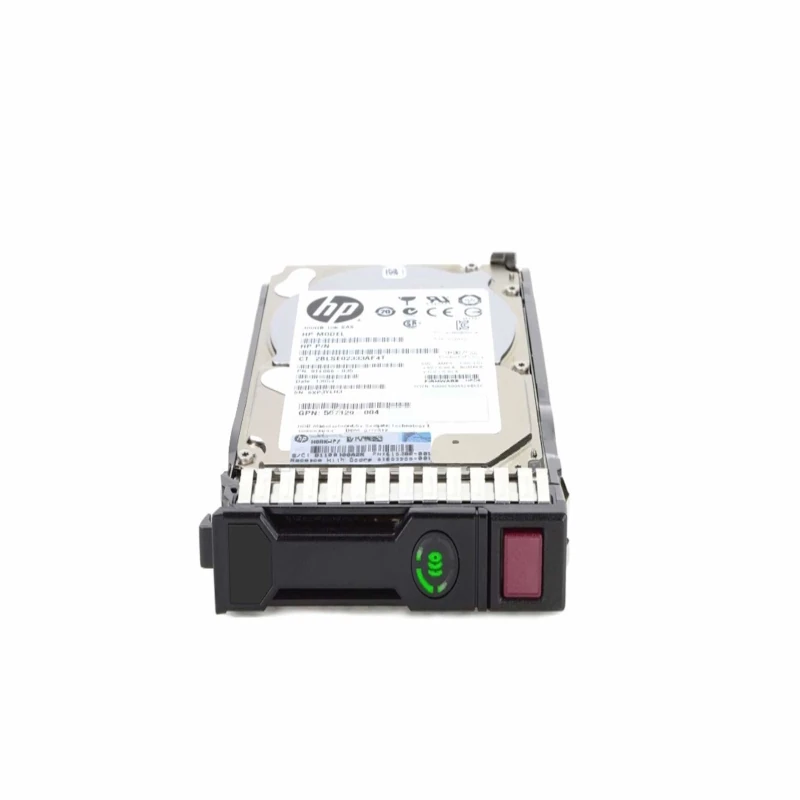

HPE 768788-001 300GB 12G SAS 10K 2.5 Hard Drive

HPE 768788-001 300GB 12G SAS 10K SFF Enterprise Hard Drive

HPE 768788-001 is an assembly number found on a 300GB Enterprise SAS hard drive. The drive spins at 10,000 rpm, uses a 12Gb/s SAS interface and is built in the 2.5 inch small form factor. Parts databases link this assembly number to the HPE option kit 785067-B21 and the spare part 785410-001, which ship in the SmartDrive Carrier for ProLiant Gen8 to Gen10 servers.

Assembly numbers are printed on the drive label itself, so 768788-001 is often what an engineer reads when holding a failed disk. This page helps you match that number to the right replacement. The drive suits boot volumes, operating system mirrors, small databases and application servers where response time matters more than raw capacity.

Euroland IT Store stocks the 768788-001 in New and Refurbished condition, subject to current stock.

HPE 768788-001 Technical Specifications

What Is The HPE 768788-001?

HPE drives carry several layers of numbering. The assembly number, such as 768788-001, identifies a specific build of the drive. Cross-reference data places it under option kit 785067-B21 and spare 785410-001, alongside a second assembly number, 781581-005. Drive model numbers reported for this same part include EG0300JEHLV and EG000300JWEBF.

The suffix matters. HPE reuses the 768788 base number for other capacities, so 768788-002 is listed as a 600GB drive and 768788-004 as a 1.2TB drive. Reading the full number, including the last three digits, is the simplest way to avoid ordering the wrong capacity.

Why 10K Enterprise Drives Suit Boot And Application Volumes

A 10,000 rpm drive reaches data faster than a 7,200 rpm Midline drive because the platter passes under the head more often. HPE Enterprise drives are also rated for continuous, heavy duty cycles. That combination makes small 300GB 10K disks a long-standing choice for mirrored operating system volumes and for applications that make many small reads and writes.

Capacity is modest, so these drives are not meant for bulk storage. Many servers pair two 300GB 10K drives in RAID 1 for the OS with larger Midline drives or SSDs for data.

New HPE 768788-001

Buy New if you want an unused drive for a critical boot mirror or need a fresh spare for your maintenance stock. Condition and warranty information for New units is shown on the product page.

Refurbished HPE 768788-001

Refurbished drives are a cost-effective way to repair a degraded mirror or RAID set in a server that is otherwise working well. The product page explains the condition and warranty for Refurbished units.

Compatibility

• HPE ProLiant DL360 Gen8 (DL360p and DL360e), Gen9 and Gen10
• HPE ProLiant DL380 Gen8 (DL380p and DL380e), Gen9 and Gen10
• HPE ProLiant BL460c Gen8, Gen9 and Gen10
• HPE ProLiant ML30 and ML110 Gen9 and Gen10
• HPE ProLiant XL170r Gen9 and Gen10

These platforms come from PartSurfer-based cross-references. Always confirm your server model and drive cage, and check whether the drive you are replacing came with a carrier fitted.

Related Part Numbers

• HPE 785067-B21: the option kit linked to 768788-001
• HPE 785410-001: the spare part number for the same drive
• HPE EG0300JEHLV: one of the drive model numbers reported for it
• HPE EG000300JWEBF: another reported model number
• HPE 872475-B21: a 300GB SAS 12G 10K 2.5 inch drive listing
• HPE 652564-B21: an older 300GB 6G SAS 10K SFF drive

How To Check This Is The Right Replacement

1. Read the full number on the drive label, including the -001 suffix.
2. Confirm the capacity is 300GB and the speed is 10K.
3. Check for 785067-B21, 785410-001 or 781581-005 on the label or paperwork.
4. Decide whether you need the drive with an SC carrier or as a bare drive.
5. Make sure your server uses 2.5 inch SFF bays.

Restoring A RAID 1 Boot Mirror

When one disk in an OS mirror fails, the server usually keeps running on the surviving drive. Replace the failed disk as soon as you can, because the system has no redundancy until the mirror is rebuilt. With a 300GB 10K drive, rebuilds are relatively quick. Check in HPE Smart Storage Administrator that the logical drive returns to an OK state before closing the job.

Buying HPE 768788-001 in the UK

Euroland supplies HPE drives to UK organisations, IT support providers, resellers and repair workshops. Look at the product page for current condition, warranty, stock and delivery details. Orders of more than £100 + VAT ship free to UK mainland addresses. If you would like us to check the match, send the server model and every number on your current drive, or call 0203 209 6002.

Frequently Asked Questions

Is the HPE 768788-001 compatible with my server?

The drive linked to 768788-001 is listed for HPE ProLiant Gen8, Gen9 and Gen10 servers with SFF bays, including DL360 and DL380 models, so confirm your exact server before ordering.

What option kit matches assembly number 768788-001?

Cross-reference data links 768788-001 to option kit 785067-B21 and spare part 785410-001, both for the 300GB 12G SAS 10K SFF Enterprise drive.

Should I order a New or Refurbished 768788-001?

New is ideal for critical boot mirrors and spare stock, while Refurbished keeps the cost down when repairing an existing array.

What warranty is included with the 768788-001?

Warranty cover depends on the condition and is shown on the product page, and our team can confirm it on request.

Can the 768788-001 be delivered anywhere in the UK?

Yes, we deliver across the UK, with free shipping to UK mainland addresses on orders over £100 + VAT.
