| Part Number: | P11566-001 |
|---|---|
| Manufacturer: | HPE |
| Servers Spare Parts: | Server Motherboard |
| Model: | BL460C G10 |
| Description: | Buy HPE P11566-001 BL460C G10 Motherboard. Genuine part with fast worldwide shipping from Euroland IT Store UK. |
| Availability: | In Stock |

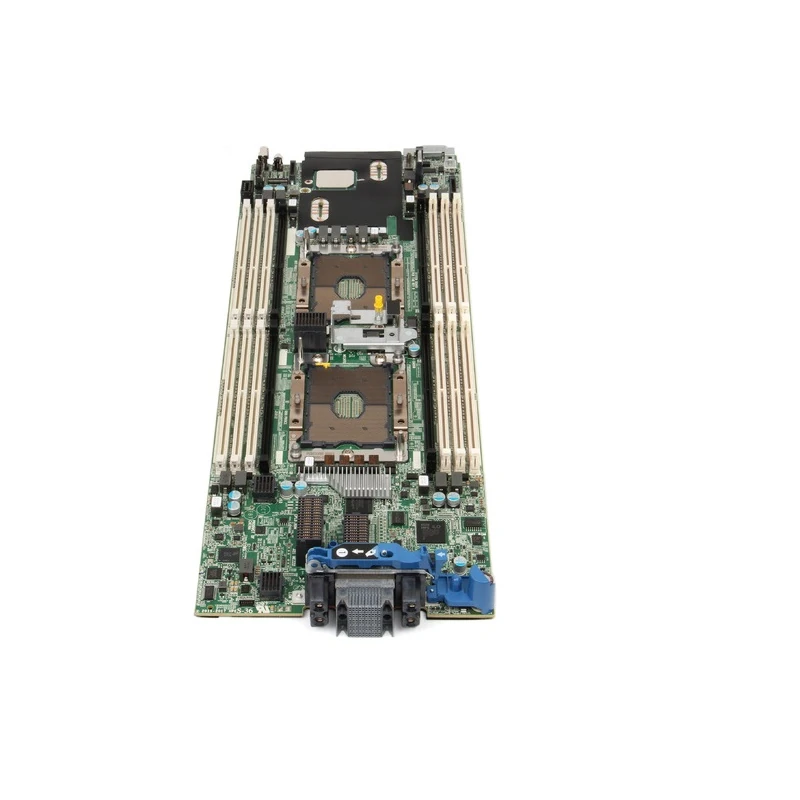

The HPE P11566-001 is the main system board used in the HPE ProLiant BL460c Gen10 server blade. It is the board that carries both processor sockets, all sixteen DDR4 memory slots, the mezzanine connectors, the FlexibleLOM connector and the iLO 5 management chip, so a fault here usually takes the whole blade out of service.
Replacing the board lets you bring a failed BL460c Gen10 back into its BladeSystem enclosure while keeping the processors, memory, drives and adapters you already own. It is a practical repair for estates that still run c7000 or c3000 enclosures and want to keep a consistent fleet of blades.
Euroland IT Store lists the P11566-001 in New and Refurbished condition, subject to stock. The condition and warranty for each option are shown on the product page when you select it.
HPE has used more than one spare number for the BL460c Gen10 system board over the life of the product. The HPE maintenance and service guide for the blade lists 875625-001 as the system board with base pan, and P11566-001 is a later spare number that resellers also tie to the BL460c Gen10. Both appear against BL460c Gen10 CTO builds based on the 863442-B21 chassis.
The two numbers should not be treated as identical without checking. Later Gen10 boards were introduced as the platform moved on to second generation Xeon Scalable processors, and one specialist reseller lists the P11566-001 with support for both first and second generation Xeon Scalable CPUs. If you are matching a board to a specific blade, compare the spare number on the label of the failed board, or send us the blade serial number, and we will help you confirm which part applies.
Each of the two sockets is an LGA3647 socket for Intel Xeon Scalable processors. Every processor drives six memory channels, with up to two DIMMs per channel, which gives the board its sixteen DIMM slots. HPE QuickSpecs for the blade state that RDIMMs and LRDIMMs cannot be mixed in the same server, and memory speed depends on the processor model fitted as well as on the DIMMs.
The second mezzanine slot is tied to the second processor, so a single processor blade only has the first mezzanine slot active. Keep this in mind if you are rebuilding a blade with a different CPU count to the one that failed.
The new board arrives without processors, heatsinks or memory. You move these across from the failed board, together with the mezzanine cards, the FlexibleLOM adapter, the Smart Array controller and any M.2 or microSD media. Use fresh thermal compound when you refit the heatsinks and follow the torque sequence in the HPE service guide.
After the swap, the board will not hold the blade identity. Use the System Utilities menu to re-enter the original serial number and product ID, which are printed on the blade label. This keeps support records, licences and enclosure inventory correct. If the blade uses TPM based encryption such as BitLocker, suspend it before the work and have the recovery key to hand, as the TPM state does not carry over to a new board. Once the blade is back in the enclosure, check that its firmware matches the rest of the fleet.
The New option suits teams that prefer unused parts for change controlled repairs. Exact condition and warranty details are shown when you choose this option.
The Refurbished option is a lower cost route for keeping older blade estates running. As with the new board, check the condition and warranty text shown on the page for the selected option.
| Specification | Details |
|---|---|
| Part number | P11566-001 |
| Other BL460c Gen10 board spare | 875625-001 (system board with base pan, per HPE service guide) |
| Brand | Hewlett Packard Enterprise |
| Product type | Server blade system board |
| Server | HPE ProLiant BL460c Gen10 |
| Processor sockets | 2 x LGA3647 |
| Processor family | Intel Xeon Scalable |
| Memory slots | 16 x DDR4 DIMM, 6 channels per processor |
| Expansion | 2 x PCIe 3.0 x16 mezzanine, 1 x FlexibleLOM |
| Management | HPE iLO 5 |
| Enclosures | HPE BladeSystem c7000 and c3000 |
| Condition options | New, Refurbished |
We supply the P11566-001 with UK delivery available, and delivery options are shown at checkout. If you are unsure whether this board or 875625-001 suits your blade, contact us with the blade model, serial number and the details from the board label, and we will check before you order.
It is a system board for the HPE ProLiant BL460c Gen10 server blade. It is not intended for earlier BL460c generations or for Synergy compute modules.
Both numbers are linked to the BL460c Gen10, with 875625-001 listed in the HPE service guide and P11566-001 used as a later spare. Check the label on your failed board or send us the blade serial number so we can confirm the right one.
Yes. The board is supplied without CPUs, heatsinks or DIMMs, so you transfer the existing Xeon Scalable processors, memory, mezzanine cards and FlexibleLOM adapter from the old board.
Re-enter the original serial number and product ID in System Utilities, check firmware levels against the rest of your blades and, if you use TPM based encryption, have the recovery key ready.
Select New or Refurbished on the product page and the condition and warranty details for that option are shown. UK delivery options appear at checkout.
